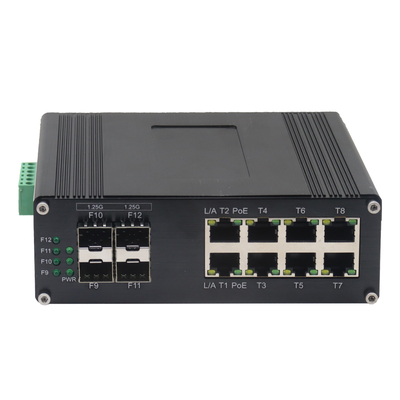

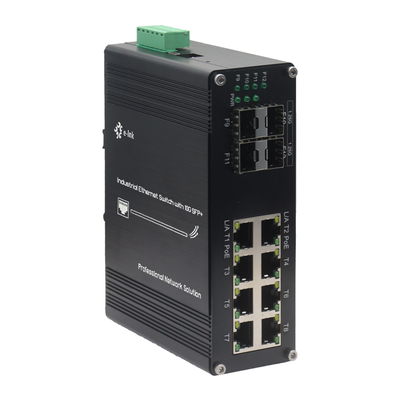

Rugged 8-Port Ethernet Switch 4 SFP Fiber Ports for IP Camera Systems

ภาพใหญ่ : Rugged 8-Port Ethernet Switch 4 SFP Fiber Ports for IP Camera Systems

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	E-link
ได้รับการรับรอง:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC408GL-SFP
เอกสาร:	LNK-IMC408GL-SFP Industrial....0.doc

การชำระเงิน:

Minimum Order Quantity:	1PCS
ราคา:	USD $179-199
Packaging Details:	Gigabit Managed PoE Switch Standard Export Package
Delivery Time:	2~7 working days
Payment Terms:	Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,L/C,D/A
Supply Ability:	2000pcs per month

ติดต่อ

รายละเอียดสินค้า

Processing Type:	Store-and-Forward	Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Power Consumption:	<16W	Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH):	149 x 114 x 50 mm	Weight:	0.55KG
เน้น:	SFP Fiber Ethernet Switch , Rugged 8 Port Ethernet Switch , 4 SFP Port Ethernet Switch

Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch

LNK-IMC408GL-SFP Managed Industrial 8-Port Ethernet Switch Overview

The LNK-IMC408GL-SFP series is a hardened, managed, eight-port, 10/100/1000Base-T switch with four SFP fibre ports. It is built for industrial and outdoor networking. It features eight Gigabit Ethernet ports (auto-negotiating and MDI/MDI-X) and four 1000Base-X SFP slots supporting single- and multi-mode fibre. Designed for use in harsh environments, it provides a reliable connection for IP cameras, wireless access points, and remote networks, offering advanced management and flexible fibre connectivity.

LNK-IMC408GL-SFP Managed Industrial 8-Port Ethernet Switch Features

Supports 8×10/100/1000Base-T RJ45 ports and 4×1000Base-X SFP fiber ports
RJ45 ports support full/half-duplex , auto-negotiation , and Auto MDI/MDIX functions
DIP switch for serial port configuration
Supports 16K bytes jumbo frames for improved transmission efficiency
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard for reduced power consumption
IP40-rated aluminum housing for enhanced durability and protection
Wide-range 12–48V DC power input for flexible deployment
DIN-rail mount design for easy industrial installation
Operating temperature range: -40°C to +80°C (-40°F to +176°F) for harsh environments

LNK-IMC408GL-SFP Managed Industrial 8-Port Ethernet Switch Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	32Gbps
Max Packet Length:	16K Bytes Jumbo Frame
Address Table Size:	16K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	4 x 1000Base-X SFP
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	<16W
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

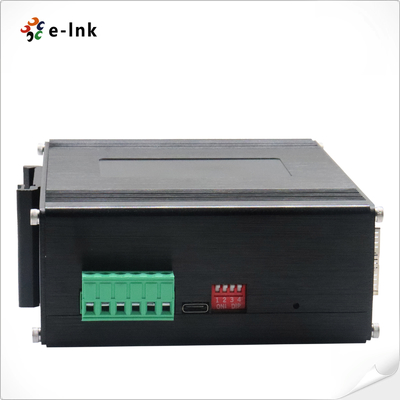

DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Switch serial port mode	ON - Enabled	OFF - Disabled
	SW 2	reserved	ON - Enabled	OFF - Disabled
	SW 3	reserved	ON - Enabled	OFF - Disabled
	SW 4	reserved	ON - Enabled	OFF - Disabled
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F9~F12
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case

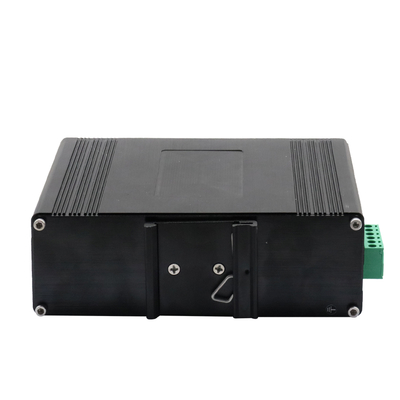

Mounting Options:	DIN-Rail mount
WEB Management Functions
System Status	Device IP
Port Configuration	Port Settings, Port Isolation, Port Priority, Optical Power DDM, Port Rate Limiting, Storm Control
Layer 2 Features	VLAN Configuration, MAC Address Management, MAC Address Aging, 802.1p Priority Mapping, Queue Scheduling, ACL, MTU Configuration
Port Statistics	Port Counters
Link Backup	ERPS, Port Aggregation, Rapid Spanning Tree
Network Diagnostics	Port Mirroring
System Management	Device Address, User Password, File Management
Default IP Address	192.168.40.253
Default Username	admin
Default Password	admin
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Ordering Information

Model	Description
LNK-IMC408GL-SFP	Industrial 8-Port 10/100/1000T+ 4-Port 1000X SFP Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Application
