รายละเอียดสินค้า:
การชำระเงิน:
|
| ตัวเชื่อมต่อ: | 8 x อาร์เจ45 | พอร์ตออปติคัล: | 4 x 1000base-X SFP |
|---|---|---|---|
| การใช้พลังงาน: | สูงสุด 8 วัตต์ | พลังงานอินพุต: | 12 ~ 48VDC พลังงานซ้ำซ้อน (บล็อกเทอร์มินัล 6 พิน) |
| ขนาด (WXDXH): | 149 x 114 x 50 มม | น้ำหนัก: | 0.55กก |
| เน้น: | 4 SFP Industrial Switch,Rugged Metal Housing Industrial Switch,8 Port Industrial Switch |
||

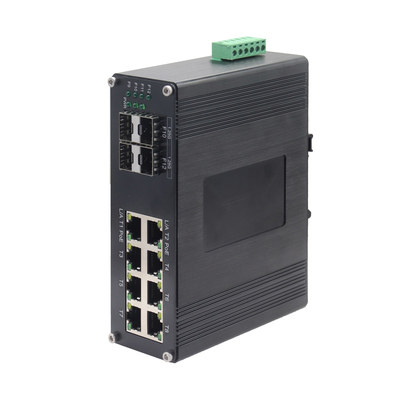

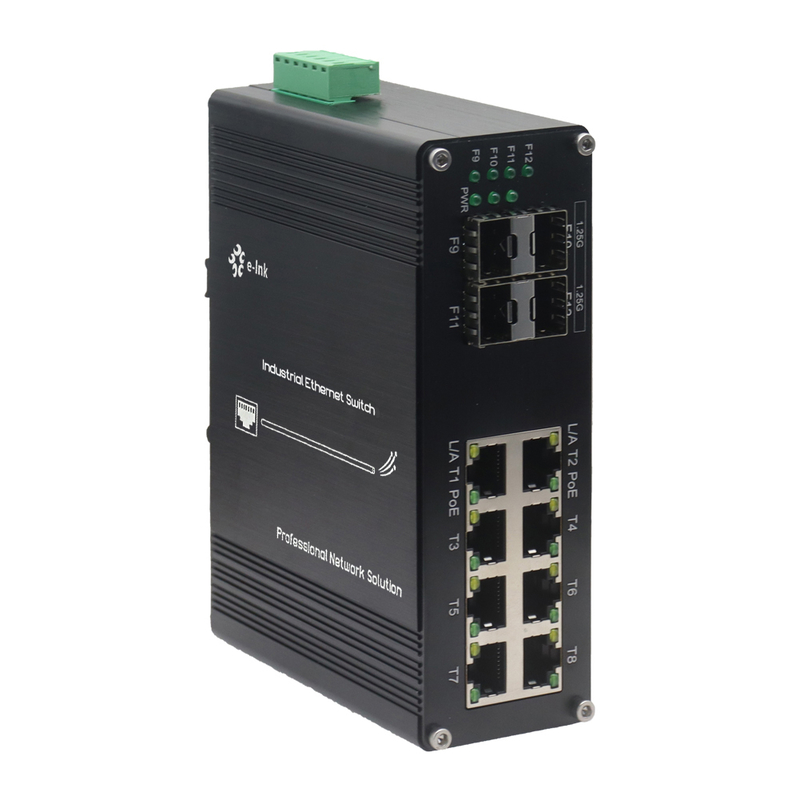

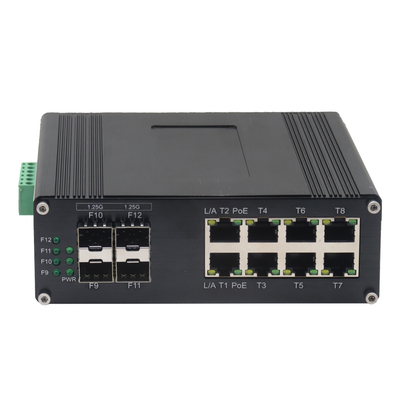

Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch
LNK-IMC408G Industrial 8-Port Ethernet Switch Overview
The LNK-IMC408G Series is an industrial-grade managed Ethernet switch with 8- 10/100/1000Base-T RJ45 ports
and 4- 1000Base-X SFP slots, designed for harsh environments.
With 8x 10/100/1000Base-T RJ45 ports featuring auto-negotiation and 4x 1000Base-X SFP slots
supporting single/multi-mode fibre, it provides a reliable, high-speed network connection for industrial applications.
Its key features include a wide operating temperature range of -40°C to 75°C, DIN-rail mounting,
du
al DC power inputs of 12–48 V, and an IP40-rated rugged metal housing, making it ideal for factory automation,
IP surveillance, and outdoor deployments. With advanced QoS, VLAN and network management capabilities,
this switch ensures stable data transmission in mission-critical environments.
LNK-IMC408G Industrial 8-Port Ethernet Switch Features
► High-Performance Ports – Supports 8×10/100/1000Base-T RJ45 ports and 4×1000Base-X SFP fiber ports for versatile networking.
► Advanced RJ45 Functionality – 10/100/1000Mbps RJ45 ports with full/half-duplex, auto-negotiation, and auto MDI/MDIX support.
► Energy Efficiency – Compliant with IEEE 802.3az Energy-Efficient Ethernet (EEE) to reduce power consumption.
► Rugged Industrial Housing – IP40-rated aluminum case for enhanced durability in harsh environments.

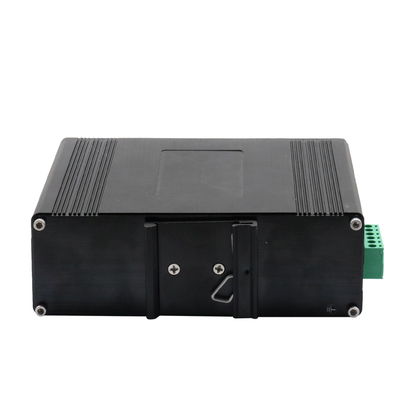

► Flexible Mounting – Supports DIN-rail installation for easy integration into industrial control cabinets.
► Wide Voltage Range – 12–48V DC power input for stable operation in diverse industrial settings.
► Low Power Consumption – Maximum power consumption of only 8W for efficient operation.
► Compact and Lightweight – Dimensions: 149 × 114 × 50 mm; Weight: 0.55 kg for space-saving installation.
► Extreme Temperature Tolerance – Reliable operation from -40°C to +80°C (-40°F to +176°F).
LNK-IMC408G Industrial 8-Port Ethernet Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
12M bits |
|
Processing Type: |
Store-and-Forward |
|
Backplane bandwidth |
110Gbps |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
8K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
4 x 1000Base-X SFP |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
8W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
PWR |
Power Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
Gigabit SFP Port: F9~F12 |
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|
Weight: |
0.55Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Regulatory Approvals |
|
|
ISO9001, CE, RoHS, FCC |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
LNK-IMC408G Industrial 8-Port Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC408G |
Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
LNK-IMC408G Industrial 8-Port Ethernet Switch Application
LNK-IMC408G Industrial 8-Port Ethernet Switch Dimension
