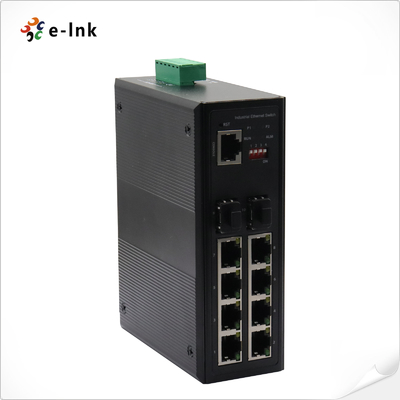

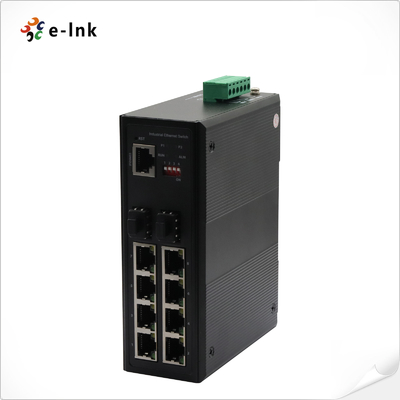

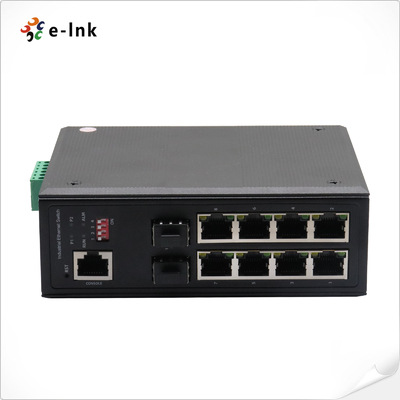

Industrial DIN Rail Switch 8 Port Gigabit PoE 2 SFP Fanless -40°C to 80°C

Physical Port

RJ45 port and speed

4x10/100/1000Base-T 802.3bt PoE++

4x10/100/1000Base-T 802.3at PoE+

Fiber port and speed

2x100/1000Base-FX SFP (Dual Mode, Auto Detection)

Parameters

Ethernet standards

IEEE 802.1x authentication

IEEE 802.1q-Tagging

IEEE 802.1p-Qeueing Layer 2 QoS/CoS with min. 4 Queues per Port IEEE 802.1w RSTP rapid spanning tree

IEEE 802.3ad Trunking

IEEE 802.3x flow control

IEEE 802.1D Spanning Tree

IEEE802.1ab LLDP

Packet buffer

4Mbits

Maximum packet length

Up to 1532Bytes

MAC address table

16K

Transmission mode

Store and Forward (full/half duplex mode)

Exchange property

Delay time: < 7μs
Backplane bandwidth: 20Gbps
Packet forwarding rate: 14.88Mpps

PoE

PoE Standard

4 x IEEE 802.3af/at/bt PoE

4 x IEEE 802.3af/at PoE

Power budget

Max. PoE output power budget 90W for single PoE port
Total PoE Power Budget up to 480 watts maximum

Lightning protection

The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

DIP Switch

DIP

State

Description

#1

ON

RSTP Disabled

OFF

RSTP Enable

#2

ON

Port VLAN Enable

OFF

Port VLAN Disable

#3

ON

SFP Port is 100M

OFF

SFP Port 100M/1000M

#4

N/A

Function Reserve

LED Indicator

Power

Connect-always

RJ45

Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle

Fiber

Link/Act: connect-always; data exchange-twinkle

Power Information

Power access mode

Phoenix terminal

Redundant power input

DC 48-56V

Overload protection

Yes

Power reverse

Support

Power consumption

Full-load<15W (Not use PoE)

Physical Property

Protection grade

IP40 aluminum case

Cooling mode

Natural cooling, no fan design

Dimensions

138mm x 106mm x 41mm (L x W x H)

Installation mode

DIN trail/wall-mountable

Weight

600g

Working Environment

Operating Temperature

-40℃~80℃

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40℃~80℃

Warranty

MTBF

100,000 hours

Defects Liability Period

5-year warranty, lifetime technical support

Certification Standard

EMI

FCC Part15 Subpart B Class A,

EN 55022 Class A

EMS

EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5(Surge),

EN61000-4-6(CS),

EN61000-4-8, EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1

Software

Software Features

Redundant network: STP/RSTP

Multicast: IGMP Snooping V1/V2

VLAN: IEEE 802.1Q 4K VLAN, QINQ

Link Aggregation: manual

Management Function: CLI/WEB/SNMP

Diagnostic Maintenance: Port mirroring, Ping

Alarm management: 1 way relay alarm output, RMON, SNMP Trap

Security: DHCP Snooping, User hierarchical management

Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control.
Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression

Model

Description

LNK-GYM7208GHP-SFP

Industrial 4-port 10/100/1000T 802.3bt PoE + 4-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

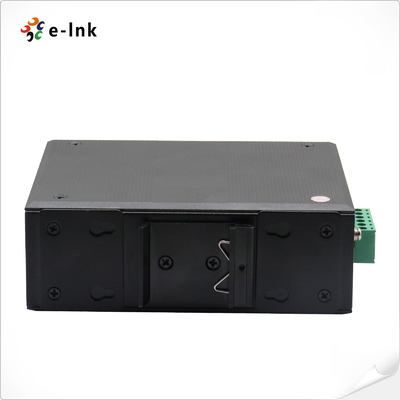

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

►480W 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
