รายละเอียดสินค้า:
การชำระเงิน:
|
| กำลังไฟฟ้าเข้า:: | 12 ~ 48V DC ใน 4 พินหญิง M12 A-Coding | การใช้พลังงาน:: | สูงสุด 36w |
|---|---|---|---|
| มาตรฐาน:: | IEEE802.3af/ที่ | ท่าเรือ:: | ขั้วต่อ M12 (การเข้ารหัส M12 ตัวเมีย 8 พิน) |
| มิติ (WXDXH):: | 95 x 70 x 30 มม. | น้ำหนัก:: | 0.25kg |
| เน้น: | Vibration Resistant M12 PoE Injector,Fanless Design M12 PoE Injector,Industrial M12 PoE Injector |
||
Industrial PoE Injector Overview
The LNK-INJ501-30-M12 is a rugged industrial-grade EN50155-compliant PoE injector
specially designed for railway, rolling stock, and vehicle applications.
It provides 1-port 10/100/1000/2.5G/5G Base-T(X) PoE output, supporting IEEE802.3at (PoE+)
with intelligent device detection to ensure that power is only delivered to PoE-compliant devices.

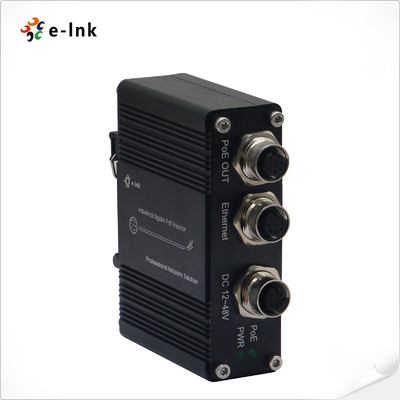

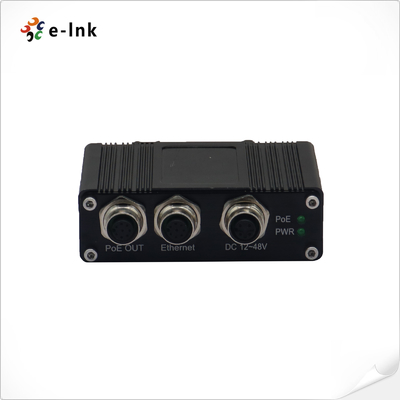

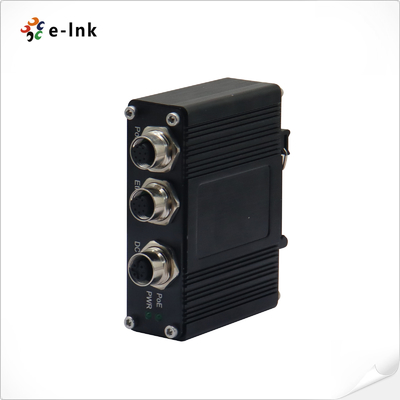

This injector is equipped with M12 circular connectors and offers vibration
and shock resistance in compliance with EN50155 standards. This makes it ideal for use
in high-reliability environments, such as train networks and onboard systems.
The M12 interface guarantees robust and secure connectivity, even under heavy mechanical stress.
The LNK-INJ501-30-M12 supports a wide input voltage range from 12~48V DC,
providing flexible power integration for mobile or remote installations.
Its compact, fanless design makes it an ideal solution for space-constrained
and mission-critical deployments that demand uncompromised performance and durability.
Industrial PoE Injector Features
► 12~48V DC Power Input
► Fully compliant with IEEE802.3af/at
► Support 10/100/1000Base-TX for power and data output

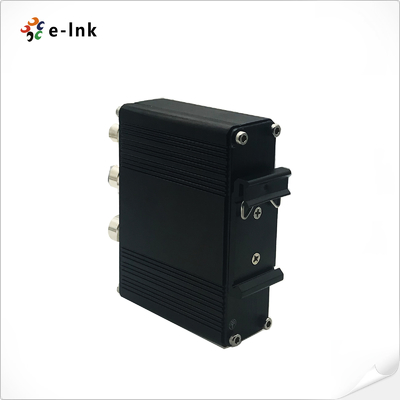

► Support DIN-Rail & Wall-mount installation
► Use Type-A M12 connectors to ensure tight and robust connections
► Small Size: 95 x 70 x 30mm
► Weight: 0.25KG
► Aluminum Case
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial PoE Injector Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
7,440,000pps (5Gbps) |
|
Cabling: |
10/100/1000/2.5G/5G Base-T |
|
Connector: |
2x M12 connector (8-pin female M12 A-coding) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC on 4-pin female M12 A-Coding |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
M12 connector (8-pin female M12 A-coding) |
|
Max. Power per Port: |
30W Max |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A, EN50155 |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Industrial PoE Injector Ordering Information
|
Model |
Description |
|
LNK-INJ501-30-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G M12 PoE Injector 12~48V DC Power Input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
Industrial PoE Injector Application
