| กำลังไฟฟ้าเข้า:: | 12~48V DC (บล็อกขั้วต่อ) | Power Consumption:: | <125W (Non-PoE<6W) |
|---|---|---|---|
| ขนาด: | 95 x 70 x 29 มม. | ตัวเลือกการติดตั้ง: | รางปีกนก / ติดผนัง |
| Weight:: | 0.25Kg | Casing: | Aluminum Case |
| เน้น: | Managed Gigabit PoE Switch,12–48V DC PoE Switch,1 Uplink Industrial Gigabit PoE Switch |
||

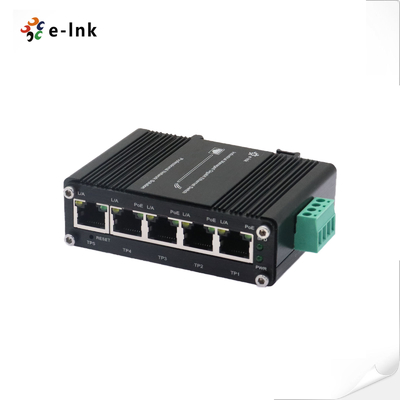

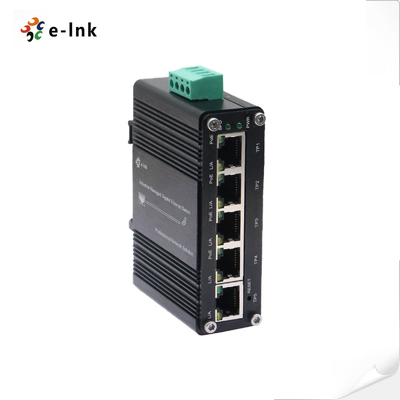

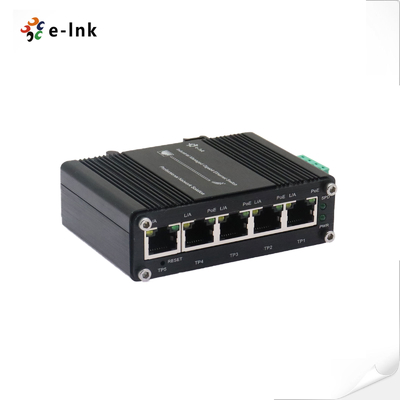

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Overview

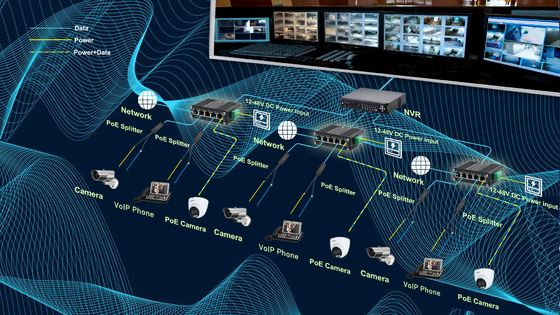

The LNK-IMC005GPM is a Mini Industrial Managed Gigabit PoE Switch designed for harsh industrial environments. It features 4 x 10/100/1000BASE-T PoE+ ports and 1 Gigabit uplink port, delivering IEEE 802.3at PoE+ power up to 30W per port for IP cameras, wireless APs, and VoIP phones. The switch offers a wide 12~48V DC power input, ensuring power redundancy and reliable performance in demanding conditions.
Built with a rugged IP40-rated metal housing and supporting DIN-rail or wall mounting, this switch withstands vibration, shock, and extreme temperatures from -40°C to 80°C. It is CE and FCC certified and has passed a 100% burn-in test for guaranteed durability. With its advanced managed features, the LNK-IMC005GPM provides secure, stable, and flexible Ethernet connectivity, making it ideal for industrial automation, ITS (Intelligent Transportation Systems), military, and utility applications where commercial devices cannot operate
Features
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
► 12~48V DC wide range power input
► Supports 802.3x Flow control
► Supports WEB Management
► Supports DIN-Rail and Wall-mount installation
► Up to 120-watt PoE budget (48V DC),
► Up to 90-watt PoE budget (24V DC),
► Up to 60-watt PoE budget (12V DC)
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | |||||||||||||||||||||
| Standards: | IEEE 802.3 Ethernet | ||||||||||||||||||||
| IEEE 802.3u Fast Ethernet | |||||||||||||||||||||
| IEEE 802.3ab Gigabit Ethernet | |||||||||||||||||||||
| IEEE 802.3x Full-Duplex Flow Control | |||||||||||||||||||||
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |||||||||||||||||||||
| IEEE 802.3at Power over Ethernet Plus PSE | |||||||||||||||||||||
| IEEE 802.3af Power over Ethernet Plus | |||||||||||||||||||||
| Forward & Filtering Rate: | 14,880pps (10Mbps) | ||||||||||||||||||||
| 148,800pps (100Mbps) | |||||||||||||||||||||
| 1,488,000pps (1000Mbps) | |||||||||||||||||||||
| Packet Buffer: | 1Mbits | ||||||||||||||||||||
| Packet Length: | 10Kbytes | ||||||||||||||||||||
| MAC Address Table: | 8K | ||||||||||||||||||||
| Switch Fabric: | 10Gbps/non-blocking | ||||||||||||||||||||
| Exchange Property |
Backplane bandwidth: 20Gbps; |
||||||||||||||||||||
| Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
||||||||||||||||||||
| PoE (Power over Ethernet) | |||||||||||||||||||||
| Standard: | IEEE802.3af/at | ||||||||||||||||||||
| Port: | RJ45 | ||||||||||||||||||||
| Power Pin Assignment |
1/2(+), 3/6(-) or4/5(+), 7/8(-) |
||||||||||||||||||||
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) | ||||||||||||||||||||
| Environmental | |||||||||||||||||||||
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | ||||||||||||||||||||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | ||||||||||||||||||||
| Relative Humidity: | 5% to 95% non-condensing | ||||||||||||||||||||
| MTBF | > 200,000 hrs | ||||||||||||||||||||
| Electrical and Mechanical | |||||||||||||||||||||
| Input Power: | 12~48VDC (Terminal Block) | ||||||||||||||||||||
| Power Consumption: | <125W (Non-PoE<6W) | ||||||||||||||||||||
| Power Input Overload: | Automatic Resettable | ||||||||||||||||||||
|
Reset Button |
Support |
||||||||||||||||||||
| Reverse Polarity: | Present | ||||||||||||||||||||
| Dimensions (WxDxH): | 95 x 70x 29mm | ||||||||||||||||||||
| Weight: | 0.25Kg | ||||||||||||||||||||
| Casing: | Aluminum Case | ||||||||||||||||||||
| Mounting Options: | DIN-Rail / Wall-mount | ||||||||||||||||||||
| LED Indicators: | |||||||||||||||||||||
| PWR: | Power | ||||||||||||||||||||
| L/A: | Link/Activity | ||||||||||||||||||||
| PoE: | PoE Status | ||||||||||||||||||||
|
|||||||||||||||||||||
| Regulatory Approvals | |||||||||||||||||||||
| ISO9001 | |||||||||||||||||||||
| EN55022:2010+AC: 2011, Class A | |||||||||||||||||||||
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |||||||||||||||||||||
| EN 61000-3-3: 2013 | |||||||||||||||||||||
| EN55032:2017 | |||||||||||||||||||||
| IEC 61000-4-2: 2008 (ESD) | |||||||||||||||||||||
| IEC 61000-4-3: 2010 (RS) | |||||||||||||||||||||
| IEC 61000-4-4: 2012 (EFT) | |||||||||||||||||||||
| IEC 61000-4-5: 2014 (Surge) | |||||||||||||||||||||
| IEC 61000-4-6: 2013 (CS) | |||||||||||||||||||||
| IEC 61000-4-8: 2009 (PFMF) | |||||||||||||||||||||
Order Information
| Model | Description |
| LNK-IMC005GPM | Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48 |
