Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C

จีน E-link China Technology Co., Ltd. รับรอง
จีน E-link China Technology Co., Ltd. รับรอง
The engineer solved our problem very quick, and the service is very good. Very professional factory.

—— Robert Lichtenstein-Canada

I had no concern, was buying and testing, so equipment is ok. So equipment and logistic is ok, we keep ordering and making business.

—— Anek – Thailand

I'm very satisfied with the media converter received, the OEM order quality is good.

—— Faize Akçaba-Turkey

E-link Sales are very professional, they give me not only product, but also solution. All E-link Fiber Media Converters and PoE Switches works well.

—— Patrícia Maia-Brazil

สนทนาออนไลน์ตอนนี้ฉัน

Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C

Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C
Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C

ภาพใหญ่ :  Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: E-link
ได้รับการรับรอง: ISO9001, CE, RoHS, FCC
Model Number: LNK-IMC010GP
การชำระเงิน:
Minimum Order Quantity: 1PC
ราคา: US$39.9/pc
Packaging Details: Mini Industrial PoE Switch Standard Export Package
Delivery Time: 2~7 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000pcs per month
รายละเอียดสินค้า
Product Name: Industrial 10 Port PoE Switch Input Power: 12~48VDC Redundant power with polarity reverses protection function
Dimensions (WxDxH): 95 x 88 x 46mm Weight: 400g
Mounting Options: DIN-Rail mount การใช้พลังงาน:: <250W (ไม่ใช่ PoE<10W)
เน้น:

8 Port Gigabit PoE+ Switch

,

240W Industrial PoE+ Switch

,

2 Gigabit Uplink Ports PoE+ Switch

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview

The LNK-IMC010GP is a compact industrial 8-Port Gigabit PoE+ switch with 2 additional uplink ports, specially designed for space-constrained and harsh environments. Delivering wire-speed Gigabit performance and a total PoE power budget of 240W, it supports IEEE 802.3at PoE+, providing up to 30W per port for high-powered devices such as IP cameras, wireless APs, and VoIP phones.

Equipped with 8 x 10/100/1000BASE-T PoE+ ports and 2 x Gigabit RJ45 uplink ports, the LNK-IMC010GP ensures flexible network expansion. The 48–57V DC power input enables power redundancy and operational reliability, while the rugged IP40-rated metal housing offers strong resistance to electromagnetic interference and electrical surges, making it ideal for industrial automation, traffic control systems, and outdoor cabinets without air conditioning.

With its fanless design for silent operation and an extended operating temperature range from -40°C to 80°C, this switch guarantees stable performance in extreme environments—all without the need for additional software configuration.



Features

► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► Up to 8 ports of IEEE 802.3af/at devices powered

► Up to 240-watt PoE budget

► 48~57V DC redundant power with reverse polarity protection

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case



► -40°C to 80°C (-40°F to 176°F) operating temperature

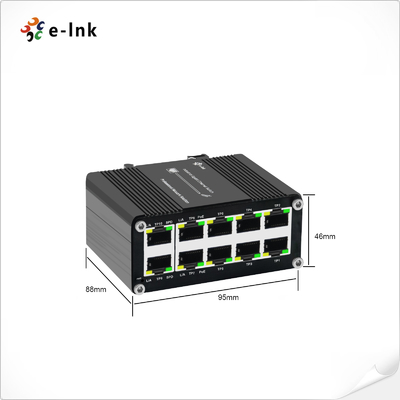

Dimension & Size

Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C 0

Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 2Mbits
Packet Length: 9216bytes
MAC Address Table: 4K entries
Switch Fabric: 20Gbps/non-blocking
Switch Throughput (packet per second) 14.88Mpps@64bytes
Interface
Connector:

10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
8 ports with 802.3at PoE+ injector function (Port 1 to 8)

PoE (Power over Ethernet)
Standard:

IEEE 802.3at Power over Ethernet Plus/PSE
IEEE 802.3af Power over Ethernet/PSE

Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 240-watt PoE budget
Max. Number of Class 4 PDs 8
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 100,000 hrs
Electrical and Mechanical
Input Power:

48~57VDC
Redundant power with polarity reverses protection function

Power Consumption: <250W (Non-PoE<10W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 88 x 46mm
Weight: 400g
Casing: Aluminum Case
Mounting Options: DIN-Rail mount
LED Indicators:
PWR Power
L/A Link/Activity
SPD Data Rate
PoE Max 30W per port
Regulatory Approvals
EMC CE (EN55032, EN55035)
EMI FCC Part 15 Subpart B
EMS EN61000-4-2 (ESD) EN61000-4-3 (RS)
EN61000-4-4 (EFT) EN61000-4-5 (Surge)
EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
Safety CE (EN60950-1)
Surge Protection 8KV for PoE, RJ-45 and SFP ports
Shock IEC60068-2-27
Freefall IEC60068-2-32
Vibration IEC60068-2-6































































Ordering Information

Model Description
LNK-IMC010GP Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed.
Power Options ► Power Supply is to be purchased separately

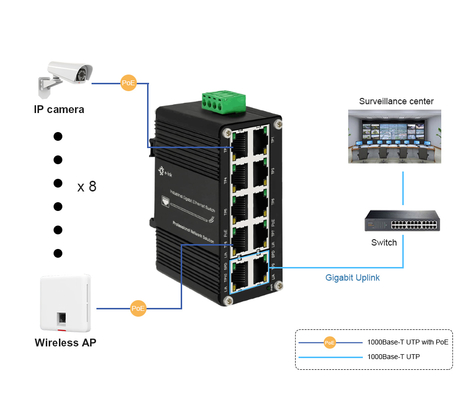

Application
Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C 1
