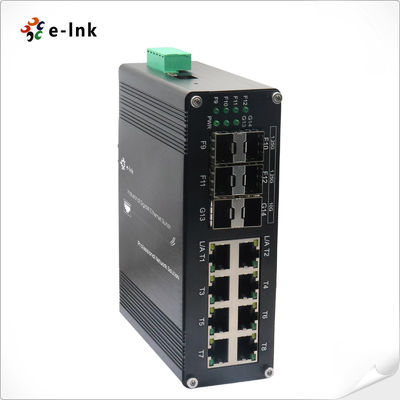

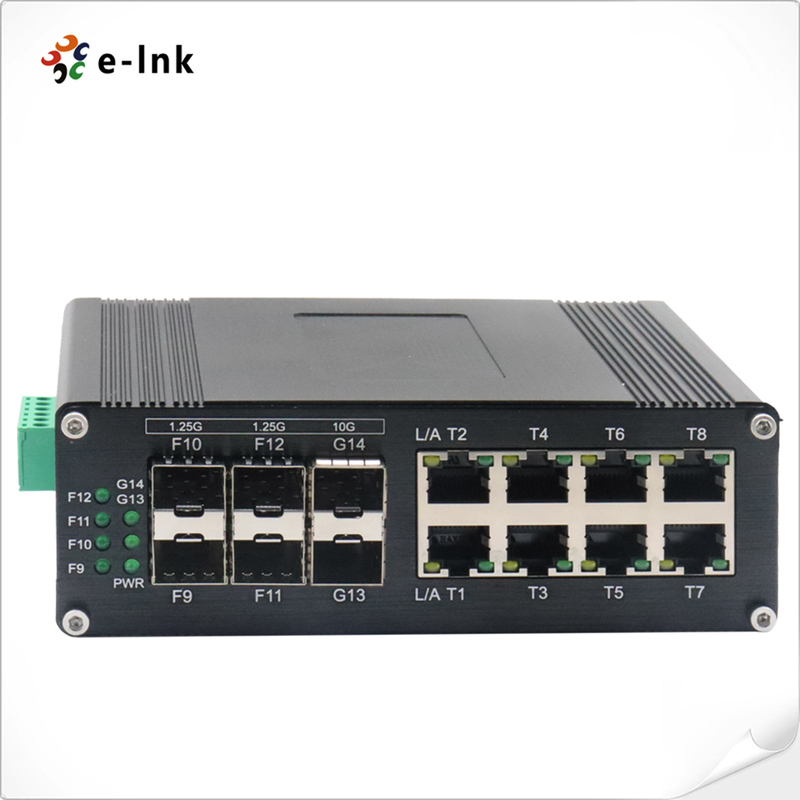

Hardened Managed Switch 10G Fiber Uplinks for IP Surveillance Systems

Hardened Managed Switch 10G Fiber Uplinks for IP Surveillance Systems
Hardened Managed Switch 10G Fiber Uplinks for IP Surveillance Systems Hardened Managed Switch 10G Fiber Uplinks for IP Surveillance Systems

ภาพใหญ่ :  Hardened Managed Switch 10G Fiber Uplinks for IP Surveillance Systems

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: E-link
ได้รับการรับรอง: ISO9001, CE, RoHS, FCC
หมายเลขรุ่น: ETH-IMC2408M
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1pcs
ราคา: USD $179-199
รายละเอียดการบรรจุ: แพ็คเกจการส่งออกสวิตช์ POE ของ Gigabit Industrial
เวลาการส่งมอบ: 2 ~ 7 วันทำการ
เงื่อนไขการชำระเงิน: Paypal, TT, Western Union, Moneygram, Alipay, T/T, D/P, L/C, D/A
สามารถในการผลิต: 2000pcs ต่อเดือน
รายละเอียดสินค้า
ตัวเชื่อมต่อ: 8 x rj45 การใช้พลังงาน: 8W Max. (Poe in use <240W)
พลังงานอินพุต: 12 ~ 48VDC พลังงานซ้ำซ้อน (บล็อกเทอร์มินัล 6 พิน) อินเทอร์เฟซทางกายภาพ: ขั้วต่อสกรู 3 ขามาตรฐานอุตสาหกรรม
ชนิดข้อมูล: 1CH RS485 BI DIRECTION ขนาด (WXDXH): 149 x 114 x 50 มม.
น้ำหนัก: 0.55kg

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch


Industrial Managed 8-Port Ethernet Switch Overview


The ETH-IMC2408M Series is a ruggedized managed Ethernet switch featuring 8× 10/100/1000Base-T copper ports, 4× 1000Base-X SFP fiber slots, and 2× 10G SFP+ fiber slots.
It supports flexible connectivity with auto-negotiating RJ45 ports and dual-rate fiber interfaces for both single-mode and multi-mode transceivers.
Designed for harsh environments, this switch reliably integrates diverse network equipment—such as IP cameras and wireless access points—across distributed sites, offering robust performance and simplified management.


Industrial Managed 8-Port Ethernet Switch Features


  • High-Density Port Configuration: Equipped with 8x 10/100/1000Base-T RJ45 ports, 4x 1G SFP slots, and 2x 10G SFP+ slots for versatile and scalable connectivity.
  • Advanced RJ45 Port Features: Each 10/100/1000Mbps RJ45 port supports auto-negotiation, Auto MDI/MDIX, and full/half-duplex modes for simplified deployment         and robust performance.
  • Modern Management Interface: Features a USB-C port for convenient out-of-band management, eliminating the dependency on a traditional RS232 serial console.
  • Enhanced Performance: Supports Jumbo Frames up to 9K bytes for improved data transfer efficiency and reduced CPU overhead.
  • Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption during periods of low data activity.
  • Durable Industrial Design: Housed in a rugged IP40-rated aluminum case capable of operating in a wide temperature range from -40°C to 80°C (-40°F to 176°F).
  • Flexible Installation: Supports DIN-Rail mounting for easy integration into industrial control panels and network cabinets.


Industrial Managed 8-Port Ethernet Switch Technical Indexes


Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3ae 10GBase-R

IEEE802.3p QoS

IEEE802.1d Spanning Tree

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

1,488,000,000pps (10000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

Interface

Connector:

8 x RJ45

RS485:

1 x RS485 (Optional)

Optical Port:

4 x 1000Base-X SFP

2 x 10G Base-SR/LR SFP+

USB-C:

1 x USB-C (for Management)

RS485 Serial Interface (Optional)

Physical interface

Industrial standard 3-pin screw terminal

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data+, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.(PoE in Use<240W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

Hardened Managed Switch 10G Fiber Uplinks for IP Surveillance Systems 0

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

Fiber:

Gigabit SFP Port: F9~F12

10G SFP+ Port: F13, F14

Dimensions (WxDxH):

149 x 114 x 50 mm

Weight:

0.55Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

Software Features

Redundancy Protocols

Support STP/RSTP/MSTP/ERPSv2, Link Aggregation

Multicast Support

Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q

VLAN

Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,

Time Management

SNTP

QOS

Flow-based redirection

Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL

ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT

Alarm Management

Support 1 way relay alarm output, RMON, TRAP

Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Industrial Managed 8-Port Ethernet Switch Ordering Information


Model

Description

ETH-IMC2408M

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.


Industrial Managed 8-Port Ethernet Switch Application



Hardened Managed Switch 10G Fiber Uplinks for IP Surveillance Systems 1


After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage

caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.

Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
