รายละเอียดสินค้า:
การชำระเงิน:
|
วิดีโอ: | 3G/HD/SD-SDI (270MBPS-3GBPS), Auto EQ & Rocklocking ใหม่ | การเชื่อมต่อ: | RS232/422/485, เสียง (XLR/3.5 มม.), Tally, Intercom |
---|---|---|---|
อีเธอร์เน็ต: | 10/100 Base-T, RJ45, Auto-Adaptive | เส้นใย: | SMF 10+km, MMF 300M, LC/SC/ST/FC เป็นตัวเลือก |
ความยาวคลื่น: | 1310/1550NM ตัวเลือก CWDM | พลัง: | DC 5V/3A, <15W การบริโภค |

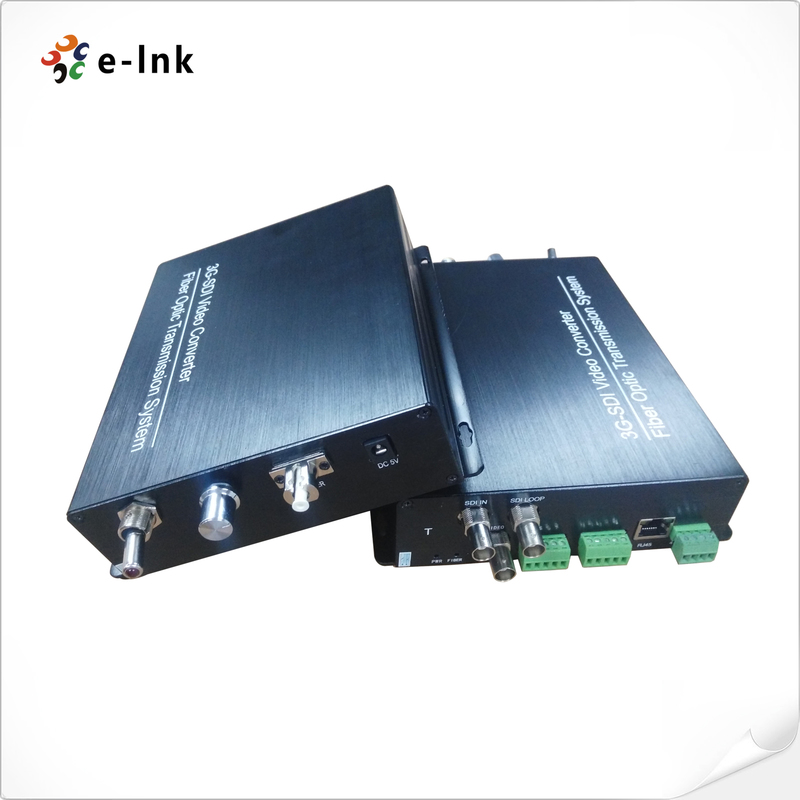

3G/HD/SD-SDI Fiber Multiplexer w Audio Ethernet Tally Intercom
Overview
The LNK-MSDI Series integrates multiple broadcast and control signals into a single fiber
optic link.Supporting 3G/HD/SD-SDI video, RS232/422/485 data, audio intercom,
tally, Ethernet, and returnvideo, it enables seamless connectivity for studio and
field production. With uncompressed broadcast-grade transmission, automatic
re-clocking, and hot-swappable modules, it ensures reliable long-distance signal
transport up to 10+ km over SMF. Designed for demanding live production, OB
vans, and professional broadcasting applications.

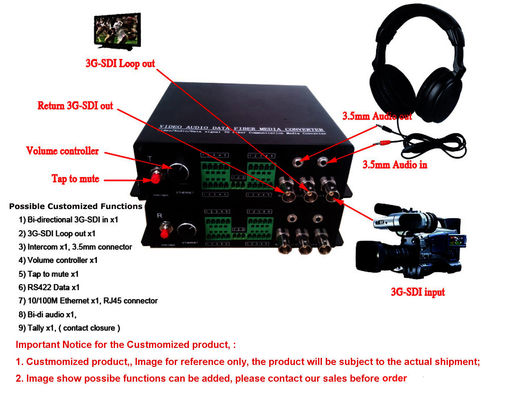

Features
All-in-One Multiplexing: SDI, Audio, Tally, Intercom, Ethernet & Return Video.
Standards Support: SMPTE 424M/292M/259M & DVB-ASI compliant.
Signal Integrity: Auto equalization & re-clocking for stable SDI delivery.
Flexible Interfaces: RS232/422/485 control, XLR audio, RJ45 Ethernet.
Fiber Performance: 10+Km over SMF, 300m over MMF.
Hot-Swappable Design: Easy installation & maintenance.
Wide Temperature Range: -10°C ~ +75°C for harsh environments.
Compact & Rugged: 1U-ready aluminum housing, 4kg build.
Technical Indexes
General Specifications | |
Work Temp | -10°C to +75°C |
Storage Temp | -40°C to 85°C |
humidity | 0 ~ 95% (non-condensing) |
Input power | DC5V 3A |
Power consumption | 15W |
Net weight | 4kg |
Appearance size | 172mm*167mm*45mm (LxWxH) |
Optical Fiber | |
Wavelength | 1310nm / 1550nm / CWDM |
Output Power | -6~-1dBm |
Rx sensitivity | <-18dBm |
Transmission Distance | SM fiber 10+km , MM fiber 300m |
Optical connector | Dal LC /FC/ST/SC/MX/ Lemo / Neutrino (optional) |
SDI input/output | |
Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
Cable Equalization | Automatic cable EQ (Bel den 1694A cable) |
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s | |
SDI interface | BNC 75 Ohm |
Intercom | |
Camera Optic Adaptor | |
Interface | 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
Microphone | Mic inputs with mute and pre-empt |
Headphone | with volume up or down |
Audio | Balance or unbalance line level |
Tally | |
Camera Optic Adaptor | |
Interface | 4pin air head or 3pin mini XLR |
Output | Dry Contact Closure or wet +12V |
On: short or +12V | |
Off: open or 0V | |
Remote Control | |
Interface | Terminal Block of Industrial Standard |
Data | RS422 /RS232/RS485 |
Ethernet | |
Port | 10/100 Base-T, RJ-45 connector |
Work mode | Full duplex/half duplex |
Data Rate | 10 M bps & 100 M bps Ethernet (Auto Adaptive) |
Pin Assignment (Screw Terminal Block) |
1 | 2 | 3 |
RS422 (3-Wire) | GND | IN/OUT+(A) | IN/OUT-(B) |
3-Wire RS422 Full Duplex Data communication connection diagram:
Transmitter End Receiver End
User’s Equipment | DATA PORT (3-PIN) | DATA PORT (3-PIN) | User’s Equipment | ||
GND | ![]() |
1GND | 1 IN(+) | ![]() |
TX(+) |
IN/OUT+(A) | ![]() |
2 IN(-) | 2 IN(-) | ![]() |
TX(-) |
RX(+) | ![]() |
3 OUT(+) | 3 OUT(+) | ![]() |
RX(+) |
Application
