| พอร์ตออปติคัล: | 1 x SFP+ ไฟเบอร์ (เหมาะสำหรับ 10GBASE-SR, 10GBASE-LR, 10G SFP+ COPPER, 10G SFP+ DAC, 10G SFP+ AOC) | อัตราการส่ง: | 10gbe |
|---|---|---|---|
| มาตรฐาน: | การร้องเรียน PCI-E 1.0 | การจำลองเสมือนเครือข่าย: | FCOE, DPDK |
| ลิงค์/ACT: | LED: ปิด = ไม่มีลิงก์; บน = ลิงก์; สีเขียวกระพริบ = กิจกรรม | อุณหภูมิการทำงาน: | 0 ° C ถึง 55 ° C (32 ° F ถึง 131 ° F) |
10 Gigabit Server Adapter Overview

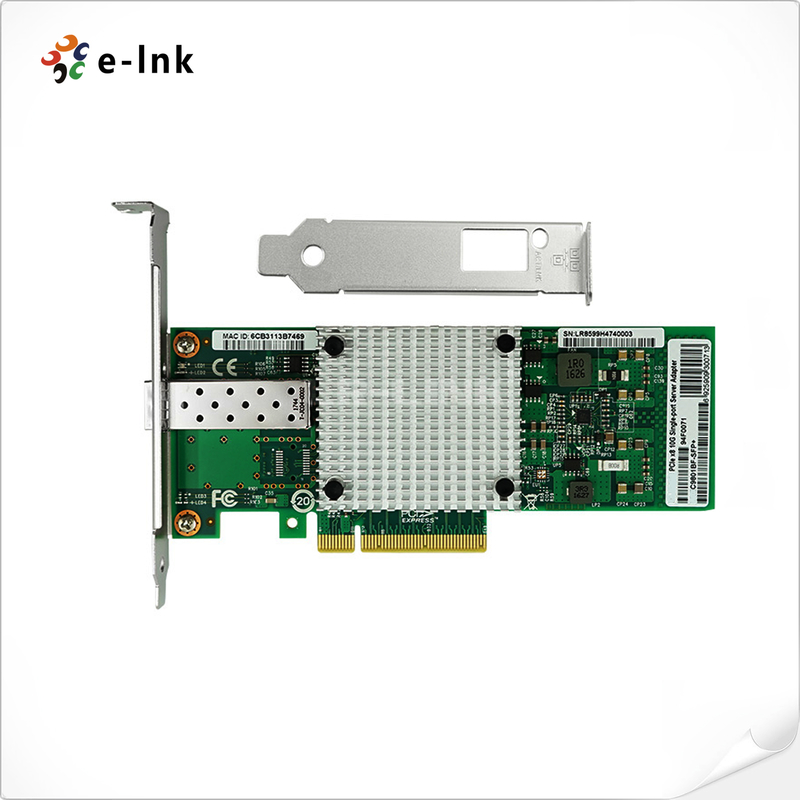

The LNK-C9801BF-SFP+ 10G Server Adapter is a high-performance, flexible network interface card
designed to meet the rigorous demands of modern data centres. With SFP+ connectivity, it provides
scalable 10 Gigabit Ethernet throughput — essential for handling the substantial data loads produced
by multi-core servers, high-performance computing (HPC), database clusters and video-on-demand
services. Engineered to eliminate I/O bottlenecks in virtualised and unified storage environments,
this adapter ensures that mission-critical applications run with maximum reliability. Advanced hardware
optimisation features such as I/O virtualisation transform the data centre by offering outstanding
scalability, mobility and efficiency. The LNK-C9801BF-SFP+ is the ideal solution for enterprises
seeking to future-proof their network infrastructure with robust, high-speed server connections.
10 Gigabit Server Adapter Features
Powered by Intel® 82599 10 Gigabit Ethernet Controller for high-performance networking
PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes for fast data throughput
Industry-standard SFP+ fiber ports for flexible 10GbE connectivity
Remote boot support with PXE and iSCSI functionality
Network virtualization support for enhanced data center efficiency
IEEE 802.1Q VLAN support for secure and segmented traffic management
Low-profile and full-height brackets included for versatile deployment
Multi-CPU load balancing to optimize performance across processors
Fibre Channel over Ethernet (FCoE) support for unified networking and storage
Broad NOS compatibility, supporting most major network operating systems
Intel® PROSet Utility integration for easy management via Windows Device Manager
Precision time synchronization with IEEE 1588 and 802.1as standards
10 Gigabit Server Adapter Technical Indexes
|
Networking |
|
|
Standards: |
IEEE 802.3u 100BASE-TX |
|
IEEE 802.3ab 1000BASE-T |
|
|
IEEE 802.3bz 2.5G/5GBASE-T |
|
|
IEEE 802.3an 10GBASE-T |
|
|
IEEE 802.3ae 10Gbps Ethernet |
|
|
IEEE 802.3x full-duplex flow control |
|
|
PCI-E 1.0 complaint |
|
|
NOS Software Support: |
Windows 7 32-bit (64-bit) |
|
Windows 8 32-bit (64-bit) |
|
|
Windows 8.1 32-bit (64-bit) |
|
|
Windows 10 32-bit (64-bit) |
|
|
Windows Server 2003 32-bit (64-bit) |
|
|
Windows Server 2008 32-bit (64-bit) |
|
|
Windows Server 2008 R2 32-bit (64-bit) |
|
|
Windows Server 2012 32-bit (64-bit) |
|
|
Windows Server 2012 R2 32-bit (64-bit) |
|
|
Linux kernel 2.6.30 or greater (x86_64) (w/ SR- IOV support) |
|
|
FreeBSD 7.2 or laster |
|
|
Linux RHEL 5.6 |
|
|
Linux RHEL 6.x |
|
|
Linux SLES 11 Sp1 |
|
|
Linux SLES 10 Sp4 |
|
|
OS Independent |
|
|
DOS NDIS 2 |
|
|
DOS ODI EFI 1.1 |
|
|
UEFI 2.1 |
|
|
Vmware ESX 4.02 |
|
|
Vmware ESX 4.02 |
|
|
VMware Workstation |
|
|
Controller: |
Intel 82599 |
|
Transmission rate |
10Gbe |
|
Network Virtualization |
FCoe, DPDK |
|
Interface |
|
|
Optical Port: |
1 x SFP+ Fiber (suitable for 10GBASE-SR, 10GBASE-LR,10G SFP+ Copper, 10G SFP+ DAC, 10G SFP+ AOC) |
|
LED Indicators |
|
|
Link/ACT |
LED: off = No Link; on = Link; Green Blinking = Activity |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-25°C to 70°C (-13°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Manageability Features |
|
|
l Preboot eXecution Environment (PXE) Support l Simple Network Management Protocol (SNMP) l Remote Network Monitoring (RMON) Statistic Counters l iSCSI Boot l Watchdog Timer |
|
|
Adapter Product Features |
|
|
l Intel® PROSet Utility l Plug and play specification support Receive Side Scaling l Direct Cache Access (DCA) |
|
|
Advanced Software Feature |
|
|
l Adapter fault tolerance (AFT) Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support l IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug*/Active Periphera Component Interconnect (PCI) l IEEE 802.1Q* VLANs l IEEE 802.3 2005* flow control support l Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol l (UDP), Internet protocol (IP) l IEEE 802.1p* l TCP segmentation large send offload l MSI-X supports Multiple Independent Queues Interrupt moderation l IPv6 offloading — Checksum and segmentation capability extended to new standard packet type |
|
10 Gigabit Server Adapter Ordering Information
|
Model |
Description |
|
LNK-C9801BF-SFP+ |
Intel 82599 PCIe x8 10Gbps Single Port Fiber Server Adapter (1x SFP+), not including SFP+ modules |
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
