| พอร์ต: | 8x 10/100/1000 RJ45 + 2x 100/1000 SFP | การจัดการ: | บนเว็บ, VLAN (4K), QOS, IGMP Snooping |
|---|---|---|---|
| ความซ้ำซ้อน: | อินพุตพลังงานคู่, โปรโตคอล STP/RSTP | อุณหภูมิปฏิบัติการ: | -40 ° C ถึง 80 ° C การออกแบบแบบไม่มีพัดลม |
| เอาต์พุตโพ: | IEEE 802.3AF/AT, ทั้งหมด 240W, 30W ต่อพอร์ต | การติดตั้ง: | Din-Rail ที่อยู่อาศัยอลูมิเนียมขนาดกะทัดรัด |
| เน้น: | Mini industrial PoE switch 8 port,Managed PoE switch with SFP slots,240W industrial Ethernet switch Gigabit |
||

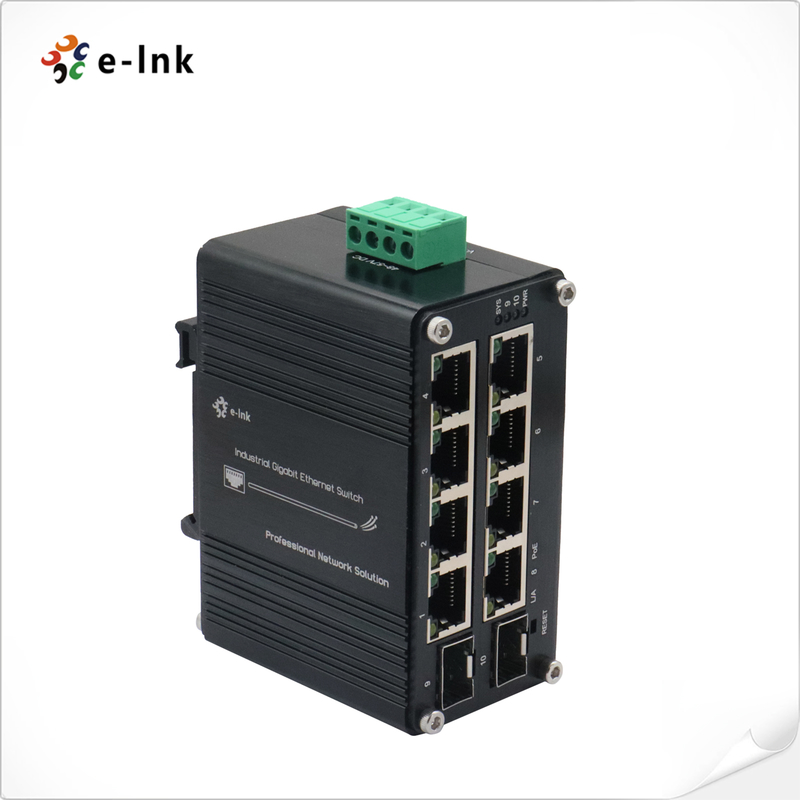

Mini Industrial Managed PoE Switch 8 Gigabit RJ45 2 SFP 240W PoE
Overview
The LNK-IMC208SGP-SFP is a rugged industrial-grade managed PoE switch with 8 Gigabit
RJ45 ports and 2 dual-speed SFP uplinks. Designed for harsh environments, it provides
reliable power and data delivery for IP cameras, wireless APs, and IoT devices. With
advanced VLAN, QoS, and redundancy features, it ensures secure and stable network
performance across critical applications.
Features
8x Gigabit PoE+ Ports + 2x 100/1000 SFP for flexible uplink and edge connectivity
240W Total PoE Budget – up to 30W per port for high-power devices
Industrial-Grade Reliability with -40°C to 80°C operating temperature
Managed Functions: VLAN, QoS, IGMP Snooping, Port Mirroring, Syslog
High Network Protection – STP/RSTP, Storm Control, MAC filtering
Redundant 48–57VDC Power Inputs for uninterrupted operation
Compact Aluminum DIN-Rail Mounting – lightweight, easy installation
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Backplane bandwidth |
20Gbps |
|
Packet Buffer Memory: |
9216 bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-X SFP |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3af Power over Ethernet |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 240-watt PoE budget |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (4-pin Terminal Block) |
|
Power Consumption: |
5W Max.(PoE in Use<240W) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
Ethernet (Per Port): |
Link/Activity |
|
PoE: |
PoE Status |
|
Fiber: |
Gigabit SFP Port: F9~F10 |
|
Dimensions (WxDxH): |
95 x 63 x 46 mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Software Features |
|
|
Redundancy Protocols |
Support STP/RSTP |
|
Multicast Support |
Support IGMP Snooping V1/V2/V3 |
|
VLAN |
Support IEEE 802.1Q 4K VLAN |
|
QOS |
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|
Management Function |
WEB |
|
Security |
Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
|
Regulatory Approvals |
|
|
ISO9001, CE, RoHS, FCC |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC208SGP-SFP |
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |

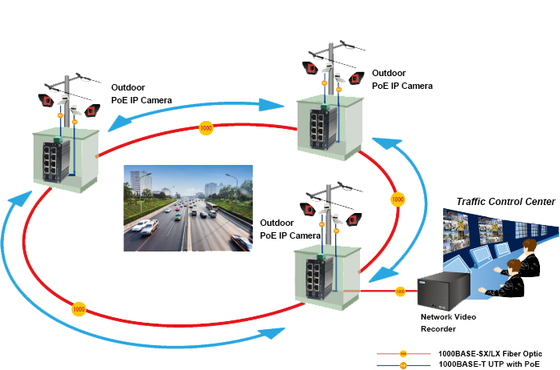

Application
