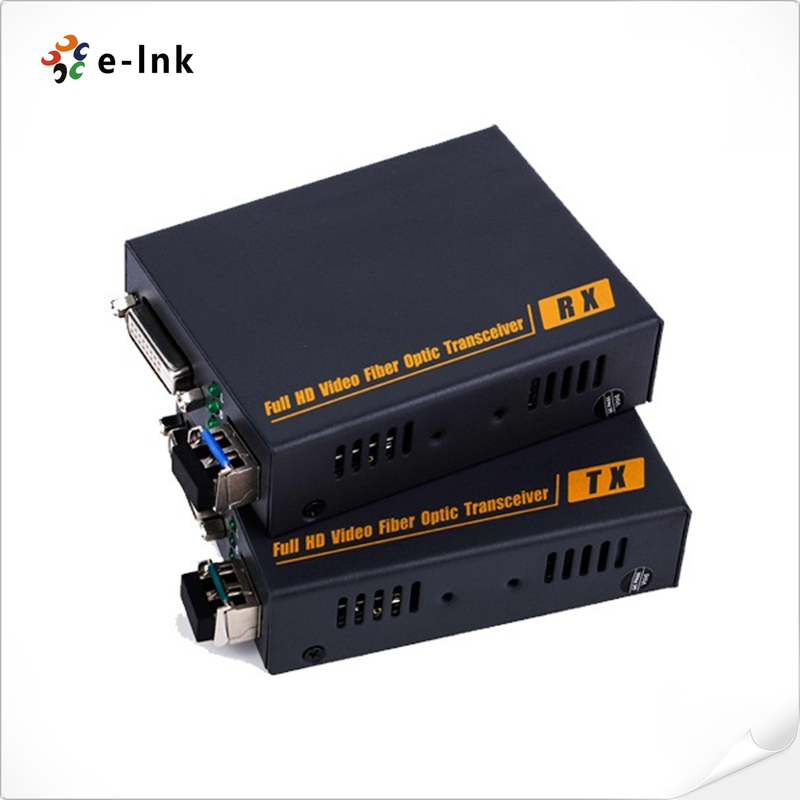

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management

ภาพใหญ่ : LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management

รายละเอียดสินค้า:

สถานที่กำเนิด:	จีน
ชื่อแบรนด์:	E-link
ได้รับการรับรอง:	CE, RoHS, FCC
หมายเลขรุ่น:	LNK-DVI-106

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1 ชิ้น
ราคา:	USD $319-369
รายละเอียดการบรรจุ:	DVI มากกว่าแพ็คเกจส่งออกมาตรฐานไฟเบอร์ Extender
เวลาการส่งมอบ:	3-10 วันทำงาน
เงื่อนไขการชำระเงิน:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal, บัตรเครดิต
สามารถในการผลิต:	1000pcs/เดือน

ติดต่อ

รายละเอียดสินค้า

ตัวเชื่อมต่อวิดีโอ:	DVI-D	อินเทอร์เฟซใยแก้วนำแสง:	รุ่น SFP - ตัวเชื่อมต่อ LC
แหล่งจ่ายไฟ:	กระแสตรง 5V/2A	การกระจายพลังงาน:	สูงสุด 5W
มิติ:	94.57326 มม.	อุณหภูมิการทำงาน:	-5 ℃ ~ +70 ℃
เน้น:	Single Fiber DVI Extender , DVI to Fiber Converter 1080P , DVI Extender with EDID Management

1080P DVI-D Fiber Optic Extender

1080P DVI-D Fiber Optic Extender Overview

The LNK-DVI-106 fibre optic extender is a high-performance solution for transmitting crystal-clear

digital DVI video signals over long distances. Using a single fibre optic cable, it reliably delivers high-resolution

video of up to 1080p/Full HD quality without any loss. The extender features EDID copy functionality

to ensure seamless compatibility between your video source and display. Designed for professional and

demanding environments, it provides exceptional stability and the robust data security inherent

in fibre optics, as well as immunity to electromagnetic interference. Its versatility makes it the ideal choice

for control rooms, digital signage, medical imaging and conference halls, where secure, long-distance,

high-definition video transmission is essential.

1080P DVI-D Fiber Optic Extender Features

► Transmits DVI video signals up to 2km–10km over a single fiber optic cable
► Supports resolutions up to 1920×1200 @ 60Hz for high-quality video output
► EDID copy function ensures compatibility with a wide range of display devices
► Fully compliant with DVI 1.0 and HDCP 1.2 standards
► Auto-detection for seamless matching between source and display devices
► Built-in automatic adjustment system delivers smooth, clear, and stable images
► Integrated ESD protection for enhanced system reliability
► Plug-and-play design for quick and simple installation

1080P DVI-D Fiber Optic Extender Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1200@60Hz
	Connector	DVI-D
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	94.57326mm
	The warranty	1 year free warranty

1080P DVI-D Fiber Optic Extender Interfaces

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management 0

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management 1

1080P DVI-D Fiber Optic Extender Ordering Information

Model	Description
LNK-DVI-106	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-DVI-S106-10	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs

1080P DVI-D Fiber Optic Extender Application

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management 2
