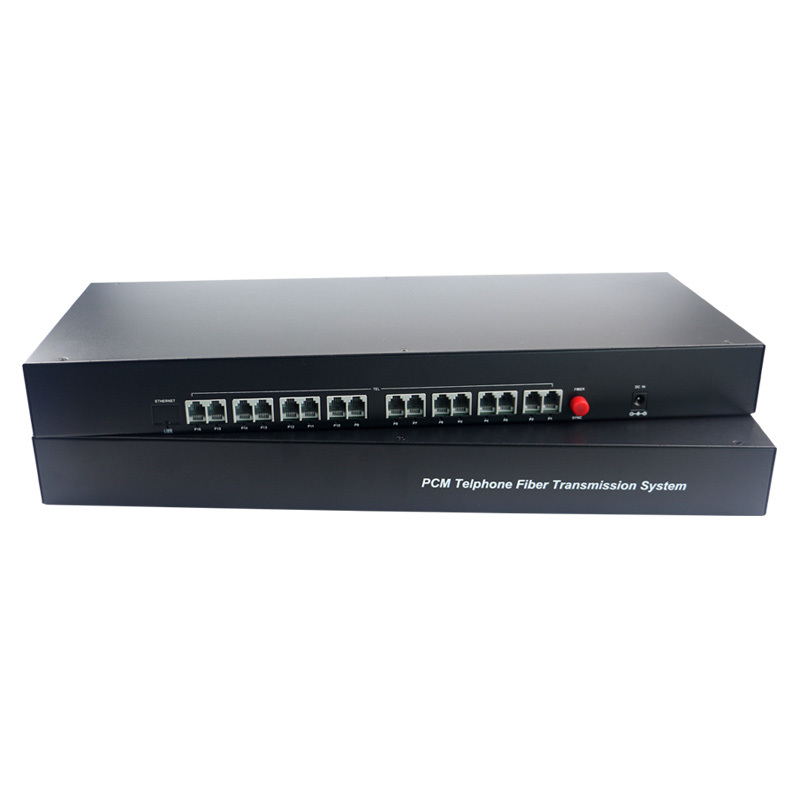

Fiber Optic Telephone Extender 16 Channel POTS FXO FXS Units Available

ภาพใหญ่ : Fiber Optic Telephone Extender 16 Channel POTS FXO FXS Units Available

รายละเอียดสินค้า:

สถานที่กำเนิด:	จีน
ชื่อแบรนด์:	E-link
ได้รับการรับรอง:	CE, RoHS, FCC
หมายเลขรุ่น:	LNK-PCM016

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1 ชิ้น
ราคา:	USD $139-149
รายละเอียดการบรรจุ:	16 ช่องหม้อไปยังแพ็คเกจส่งออกมาตรฐานไฟเบอร์ตัวแปลงไฟเบอร์
เวลาการส่งมอบ:	3-10 วันทำงาน
เงื่อนไขการชำระเงิน:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal, บัตรเครดิต
สามารถในการผลิต:	1000pcs/เดือน

ติดต่อ

รายละเอียดสินค้า

ชื่อผลิตภัณฑ์:	16 ช่องทางโทรศัพท์ผ่านตัวแปลงไฟเบอร์	อัตราการเชื่อมต่อ:	10/100 Mbps, ครึ่งดูเพล็กซ์
มาตรฐานอินเทอร์เฟซ:	IEEE 402.3/IEEE 402.1Q (VLAN)	อุณหภูมิในการทำงาน:	-35 ° ～ 75 ° C
การใช้พลังงาน:	2.5W （อินพุต: DC12V 3A)	แหล่งจ่ายไฟ:	อินพุต: AC110-40V 50/60Hz, เอาต์พุต: 12V 3A
เน้น:	Fiber optic telephone extender 16 channel , POTS FXO FXS telephone extender , DVI video fiber converter

16Ch POTS(FXO/FXS)Telephone over Fiber Mux

16Ch POTS Telephone over Fiber Overview

The E-Link 16-Channel POTS over Fibre Converter is the ultimate high-density solution

for transmitting sixteen traditional telephone lines over a single optical fibre strand. This enterprise-grade

Voice over Fibre system maximises telecommunications efficiency while dramatically reducing

cabling infrastructure and costs. It uses standard RJ-11 connectors to integrate seamlessly

with existing copper pair wiring systems. The platform operates through matched FXO and FXS units:

the FXO interface connects directly to central office (PSTN) or PBX trunk lines and has complete ringing

voltage detection capability, while the reciprocal FXS unit connects to end-user telephone devices

and provides full dial tone and calling functionality. Designed for carrier-grade voice clarity

and complete immunity to electromagnetic interference, this robust extender is ideal for large-scale

voice service deployment in telecommunications central offices, multi-building corporate campuses,

hospital networks, government facilities and secure industrial complexes.

16Ch POTS Telephone over Fiber Features

Standard RJ11 telephone interface for seamless connectivity
16 voice channels with support for Caller ID and Fax functions
Dual voice port design (O port & S port):
- O port connects to the switch
- S port connects to the user’s telephone
Compatible with FXO/FXS standard telephones
Supports point-to-point, cascaded, and distributed networking without SNR degradation
Fiber optic power link with LED indicators for system status monitoring
Industrial-grade modular design provides flexible deployment, high reliability, and long-term durability

16Ch POTS Telephone over Fiber Technical Indexes

Product Name	16 channel telephone over fiber converter
Product Model	LNK-PCM16 Series
Description	FXO/FXS Ordinary telephone
Telephone Ports	16 telephone port RJ11 port
Switch Terminal	Ordinary telephone or PBX, PBX (PBX), public telephone outside the PSTN
FXS	Ringing voltage: 75V, ringing frequency: 25HZ
FXO	Second line input impedance:600Ω (hook), return loss: 40db, ring detection voltage:35V
Ring detection frequency	17HZ-60HZ, second-line input impedance: 600Ω(hook), return loss: 40 db
Broadband Voice	8KHZ
Connection	Point to point, telephone to telephone, telephone to switch
Code	PCM code
Fiber Ports	FC/UPC
Ethernet Ports (optional)	Interface rate: 10/100 Mbps, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096 Connector: RJ45, support Auto-MDIX
Transmission distance	Single-mode single fiber 20KM
Environmental Specifications	Operating Temperature: -35°～ 75°C
	Storage Temperature: -40°～ 85°C
	Operating Humidity: 0%～95%, non-condensing
Total power consumption	2.5w(Input:DC12V 3A)
Power supply	External power supply, Input:AC110-160V 50/60Hz, Output:12V 3A

16Ch POTS Telephone over Fiber Ordering Information

Model	Description
LNK-PCM16	Analog Telephone to F/O Converter: 16-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
LNK-PCM16-E	Analog Telephone to F/O Converter: 16-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs

16Ch POTS Telephone over Fiber Application
