Industrial Managed 8-Port Gigabit PoE Switch 2 SFP 240W Power Wide Temp DIN-Rail
Overview
This industrial managed switch features 8 Gigabit PoE ports and 2 Gigabit SFP slots,
delivering both data and power to connected devices with up to 240W total PoE budget.
Designed for demanding environments, it supports a wide operating temperature range of
-40°C to 80°C and offers reliable performance with redundant power inputs. The compact
aluminum casing with DIN-rail mounting makes it ideal for applications such as IP
surveillance, wireless access points, and remote networking in industrial, transportation,
and outdoor settings.
Features
8×10/100/1000Base-T PoE+ ports (30W per port) + 2×100/1000Base-X SFP slots
Up to 240W total PoE power budget for IP cameras, APs, and other devices
Wide operating temperature range: -40°C to 80°C for harsh environments
Redundant 48–57VDC power inputs for uninterrupted operation
Compact aluminum housing with DIN-rail mounting for industrial use
Supports VLAN, QoS, IGMP Snooping, STP/RSTP, and WEB management
IEEE 802.3az Energy Efficient Ethernet for reduced power consumption
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Backplane bandwidth |
20Gbps |
|
Packet Buffer Memory: |
9216 bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-X SFP |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3af Power over Ethernet |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 240-watt PoE budget |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (4-pin Terminal Block) |
|
Power Consumption: |
5W Max.(PoE in Use<240W) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
Ethernet (Per Port): |
Link/Activity |
|
PoE: |
PoE Status |
|
Fiber: |
Gigabit SFP Port: F9~F10 |
|
Dimensions (WxDxH): |
95 x 63 x 46 mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Software Features |
|
|
Redundancy Protocols |
Support STP/RSTP |
|
Multicast Support |
Support IGMP Snooping V1/V2/V3 |
|
VLAN |
Support IEEE 802.1Q 4K VLAN |
|
QOS |
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|
Management Function |
WEB |
|
Security |
Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
|
Regulatory Approvals |
|
|
ISO9001, CE, RoHS, FCC |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC208SGP-SFP |
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |

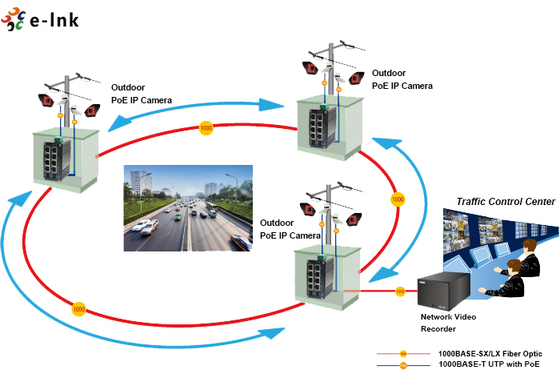

Application
