รายละเอียดสินค้า:
การชำระเงิน:
|
| ระยะทางสูงสุด: | Cat5 UTP สูงถึง 100m | ตัวเชื่อมต่อ: | 8 x อาร์เจ45 |
|---|---|---|---|
| อุณหภูมิการทำงาน: | -40 ° C ถึง 80 ° C (-40 ° F ถึง 176 ° F) | Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Dimensions (WxDxH): | 150 x 115 x 50 mm | น้ำหนัก: | 0.6kg |
| ปลอก: | เคสอลูมิเนียม | Mounting Options: | DIN-Rail / Wall-mount |
| เน้น: | 8-Port Unmanaged Ethernet Switch,58VDC Power Inputs Industrial Ethernet Switch,10/100Base-TX Industrial Ethernet Switch |
||
Overview

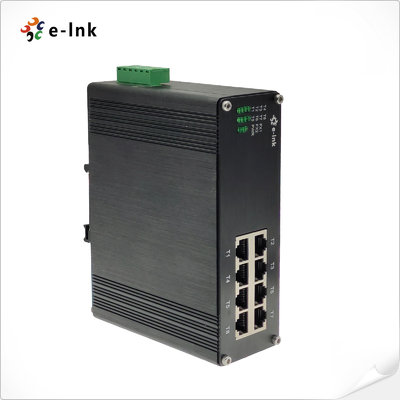

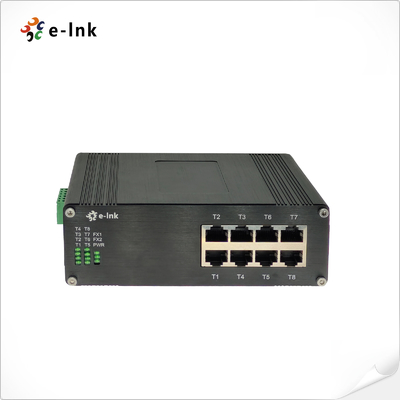

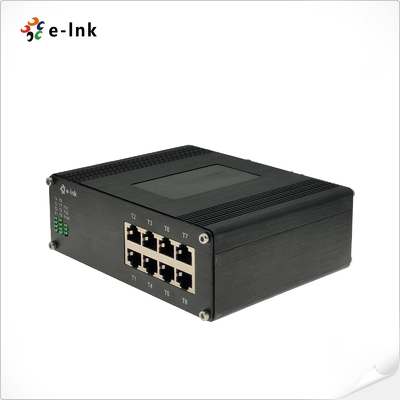

The LNK-IMC008 is an 8-port hardened industrial Ethernet switch designed for reliable networking in
harsh environments. This unmanaged switch features 8×10/100Base-TX auto-negotiation ports with
auto MDI/MDI-X support, providing plug-and-play connectivity for industrial devices.
Key Features:
✔Industrial-grade durability: Operates in wide temperature ranges and resists vibration/shock
✔100% burn-in tested for maximum reliability in critical applications
✔Compliant with CE/FCC standards for electromagnetic compatibility
✔Fanless metal housing for silent operation and enhanced heat dissipation
Ideal for:
• Factory automation systems
• Machine vision networks
• Transportation infrastructure
• Other industrial applications requiring rugged Ethernet connectivity
With its no-configuration design and proven industrial reliability, the LNK-IMC008 delivers a cost-effective
networking solution that withstands challenging environmental conditions while maintaining stable data
transmission.
Features
► IEEE 802.3az Energy Efficient Ethernet (EEE)

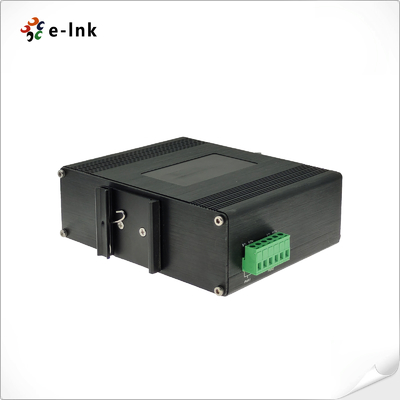

► Supports DIN-Rail and Wall-mount installation
► Redundant 12～58VDC Power Inputs
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 8 10/100Base-TX ports
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Flow Control | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Cabling | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5 UTP up to 100m |
| Interface | |
| Connector: | 8 x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC008 | Industrial 8-port 10/100BASE-T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
