รายละเอียดสินค้า:
การชำระเงิน:
|
| ขั้วต่อ: | 4 x อาร์เจ45 | พอร์ตออปติคัล: | 2 x 100Base-X (SFP, SC, FC, ST ไม่จําเป็น) |
|---|---|---|---|
| อุณหภูมิการทํางาน: | -40°C ถึง 80°C (-40°F ถึง 176°F) | กำลังไฟฟ้าเข้า: | 12~58VDC, พลังงานสำรอง (เทอร์มินอลบล็อค 6 ขา) |
| ขนาด (กxยxส): | 150 x 115 x 30 มม | น้ําหนัก: | 0.5KG |
| เน้น: | Integrating Networks Industrial Ethernet Switch,2 Fiber Port Industrial Ethernet Switch,4 TP Port Industrial Ethernet Switch |
||
Overview

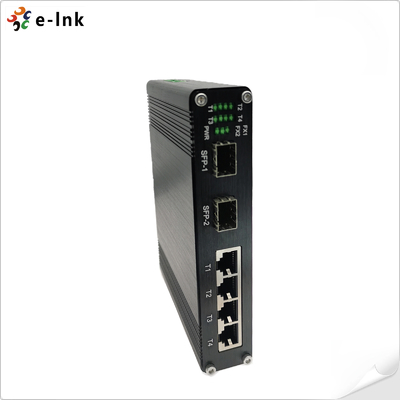

The LNK-IMC204 is an industrial-grade 4-port Fast Ethernet switch with dual fiber uplinks, designed for
reliable networking in harsh environments. This compact yet robust switch features:
- 4×10/100Base-TX copper ports with auto-negotiation, full/half-duplex operation, and auto MDI/MDI-X
crossover
- 2×100Base-FX fiber ports supporting both single-mode and multi-mode fiber (1 or 2 core)
Built for industrial applications, the switch delivers:
- Extended connectivity with fiber ports enabling transmission distances up to 2km (multi-mode) or
20km/40km (single-mode)
- Rugged construction suitable for operation in wide temperature ranges
- Enhanced reliability with fanless design and high EMI protection
Ideal for:
- Industrial automation systems
- IP surveillance networks
- Wireless access point deployments
- Remote location connectivity
The LNK-IMC204 combines plug-and-play simplicity with industrial durability, making it a cost-effective
solution for extending network reach while maintaining signal integrity in electrically noisy environments.
Its dual fiber ports provide redundancy and flexibility for critical network topologies.
Features
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 4 10/100Base-TX + 2 100Base-FX
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

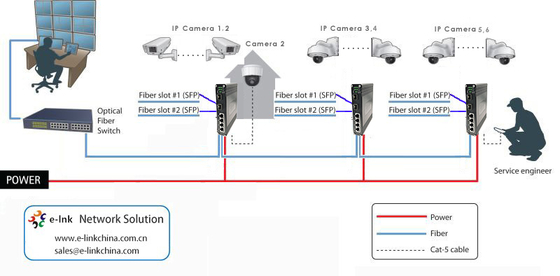

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.1 10Base-T, IEEE802.3u 100Base-TX |
| IEEE802.3 100Base-FX | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3X Flow Control | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 512K bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 1024 MAC Addresses |
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 2 x 100Base-X (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber Port: | FX1, FX2 |

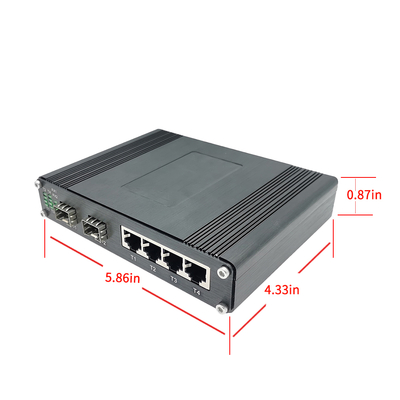

| Dimensions (WxDxH): | 150 x 115 x 30 mm |
| Weight: | 0.5Kg |
| Casing: | Metal Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC204 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC204-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC204S-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC204F-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC204-SFP | Industrial 4-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
