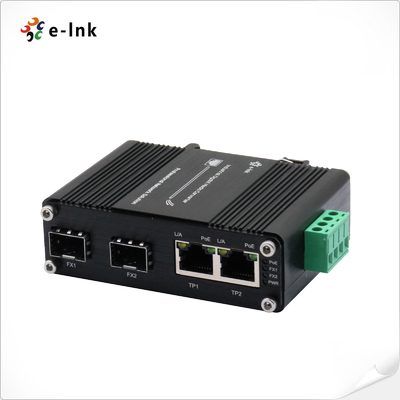

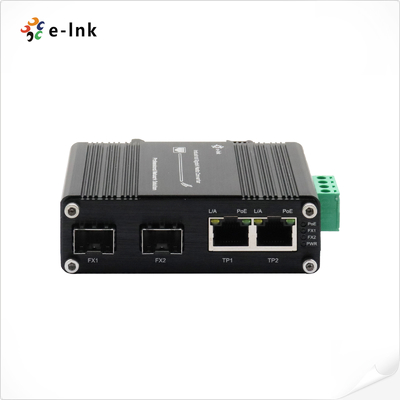

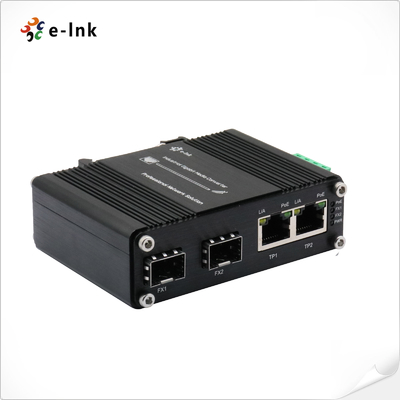

Mini Industrial 2-Port 90W PoE + 2-Port SFP Ethernet DIN Rail Type Hardened Grade 90W PoE Switch

Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
Overview
The LNK-IMC202GP90-SFP Series is an industrial-grade DIN rail-mounted PoE++ switch that delivers
ultra-high-power 90W PoE (IEEE 802.3bt) per port, making it ideal for demanding applications such as
PTZ cameras, high-performance wireless access points, and industrial IoT devices. Featuring two
10/100/1000BASE-T ports with 90W PoE++ support and one 100/1000BASE-X SFP slot, it provides
versatile connectivity for both copper and fiber networks.
Designed for extreme environments, this rugged switch operates in a wide temperature range of -40°C
to +80°C and complies with EN55022 EMI standards, ensuring reliable performance in harsh industrial
settings. The SFP slot accommodates various fiber modules (single-mode/multi-mode, 1/2 core), enabling
flexible long-distance or high-bandwidth deployments.
With its high-power PoE++ capability, robust DIN rail design, and support for both half/full-duplex modes,
the LNK-IMC202GP90-SFP is an excellent choice for industrial automation, smart surveillance, and outdoor
networking applications where high power and reliability are critical.
Features

► Supports IEEE802.3af/at PoE+ (30W) or IEEE802.3bt PoE++ (90W)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 48~57VDC Terminal Block Power Input

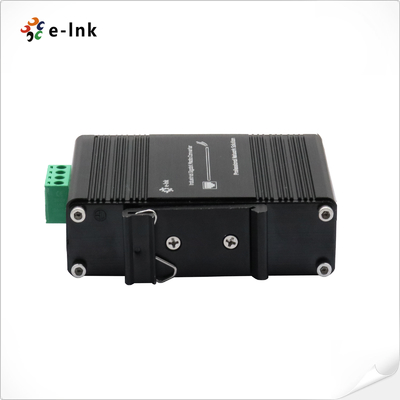

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Application





















Technical Indexes

























































Ordering Information
