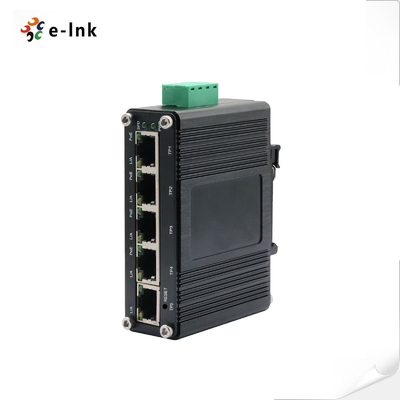

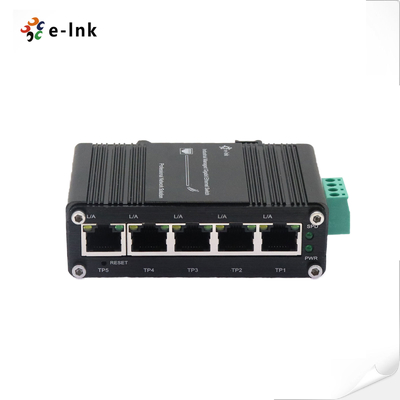

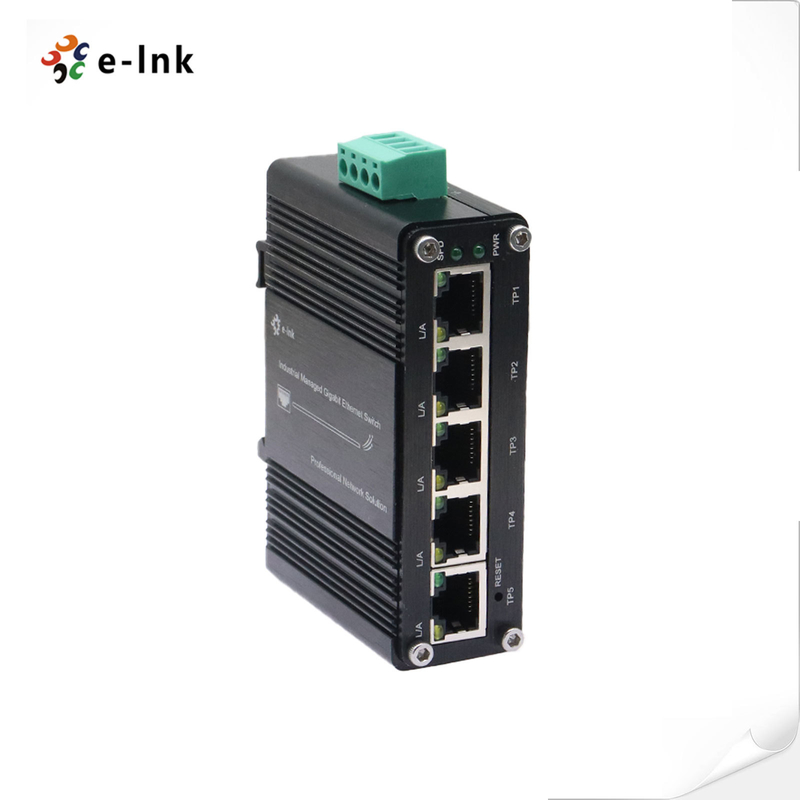

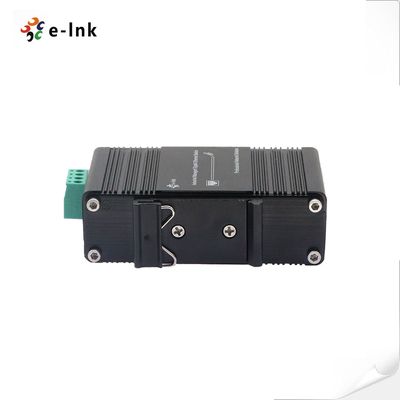

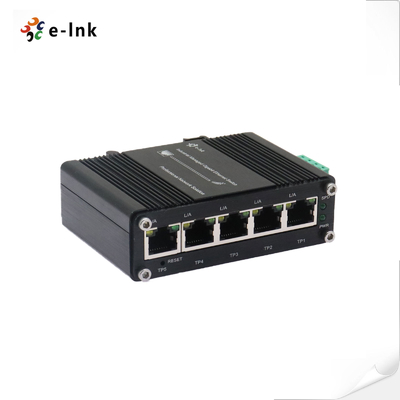

Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input

Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input
Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input

ภาพใหญ่ :  Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: E-link
ได้รับการรับรอง: CE/FCC/Rohs/ISO9001
Model Number: LNK-IMC005GM
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 บาท
ราคา: US$29.9/pc
รายละเอียดการบรรจุ: แพ็คเกจการส่งออกมาตรฐาน Gigabit Poe Industrial
Delivery Time: 2-7 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
รายละเอียดสินค้า
Input Power:: 12~48V DC (Terminal Block) Power Consumption:: <6W
Size: 95 x 70 x 29 mm ตัวเลือกการติดตั้ง: รางปีกนก / ติดผนัง
น้ําหนัก:: 0.25กิโลกรัม ปลอก: เคสอลูมิเนียม
เน้น:

Managed Industrial Ethernet Switch

,

12–48V DC Industrial Ethernet Switch

Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Overview

The LNK-IMC005GM is a Mini Industrial Managed 5-Port Gigabit Ethernet Switch designed for reliable operation in harsh industrial environments. Featuring 5 x 10/100/1000BASE-T ports and supporting a wide 12~48V DC power input, it ensures stable performance under vibration, shock, and extreme temperatures.

Built to industrial-grade standards, the switch complies with CE and FCC certifications and has passed a 100% burn-in test for guaranteed durability. Its rugged IP40-rated metal housing with DIN-rail or wall mounting options offers flexibility for deployment in space-constrained environments.

With an extended operating temperature range of -40°C to 80°C and a fanless design, the LNK-IMC005GM delivers silent, reliable performance in demanding applications such as industrial automation, intelligent transportation systems (ITS), utilities, and military projects—where standard commercial products cannot perform.



Features

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48V DC wide range power input

► Supports 802.3x Flow control

► Supports WEB Management

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature



Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af/at Optional
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps

Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48V DC (Terminal Block)
Power Consumption: <6W
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Reset Button Support
Dimensions (WxDxH): 95 x 70 x 29 mm
Weight: 0.25KG
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR Power
L/A Link/Activity
SPD Data Rate
WEB Management Features
System Settings Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings 802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings Priority Selection; Scheduling Mode
Loop Detection Support
Saving Settings Get Configuration; Restore Configuration; Saving Configuration
Default IP 192.168.40.253
Default User Name admin
Default Password admin
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)


Order Information


Model Description
LNK-IMC005GM Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options

► Power Supply is to be purchased separately

► Recommend MeanWell MDR-20-24

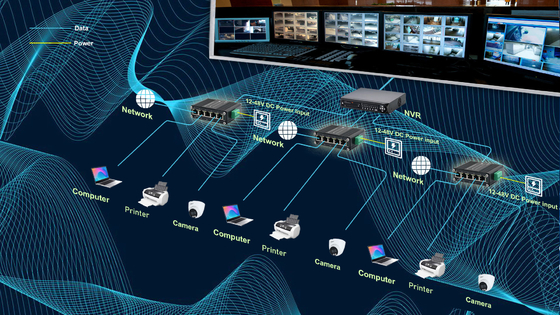

Application
Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input 0
