รายละเอียดสินค้า:
การชำระเงิน:
|
| ตัวเลือกการติดตั้ง: | รางปีกนก / ติดผนัง | ขนาด (กxยxส): | 95 x 70x 29มม |
|---|---|---|---|
| น้ําหนัก: | 0.25กิโลกรัม | Input Power: | 12~48VDC (Terminal Block) |
| การใช้พลังงาน:: | <6W (PoE ใช้งานอยู่: <125W) | Operating Temperature:: | -40°C to 80°C (-40°F to 176°F) |
| เน้น: | Gigabit Industrial 5-Port Switch,Industrial Fanless 5-Port Switch,Plug-and-Play Industrial 5-Port Switch |
||

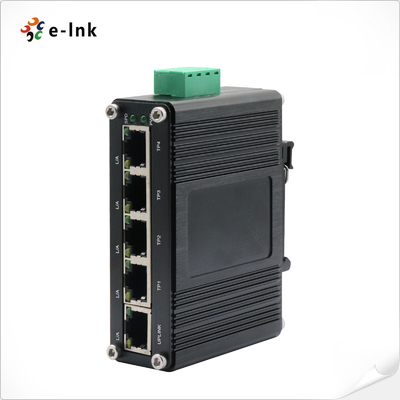

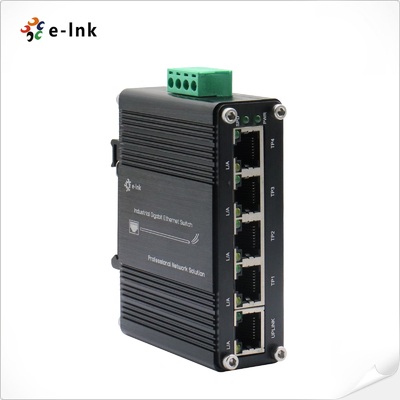

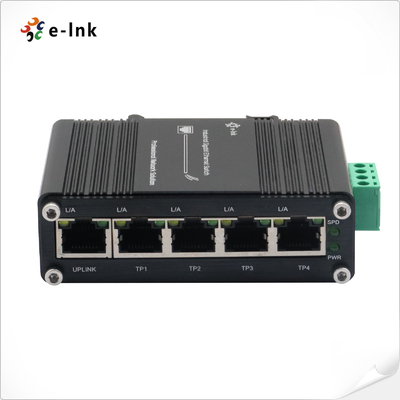

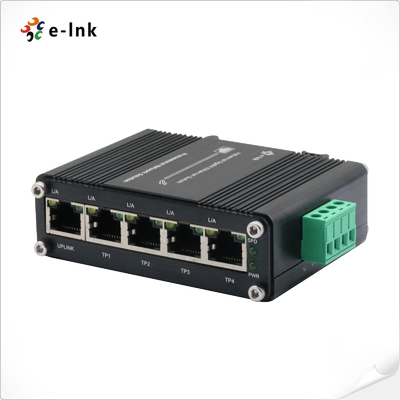

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch
Overview
The Mini Industrial 5-Port Gigabit Ethernet Switch is a compact, unmanaged switch designed for reliable performance in harsh industrial environments. Featuring 5 x 10/100/1000BASE-T ports and a 12~48V DC wide-range power input, this switch ensures stable operation against vibration, shock, and extreme temperatures.
Built to industrial-grade standards, it complies with CE and FCC certifications and has undergone a 100% burn-in test for guaranteed durability. With a wide operating temperature range, rugged design, and plug-and-play installation, it’s an ideal, cost-effective solution for industrial Ethernet connectivity in automation, transportation, and energy applications.
Features
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► PoE Optional
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3af/at Optional | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W (PoE In Use: <125W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |

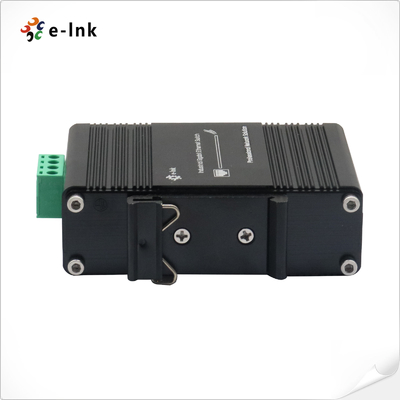

| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55032:2017 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordeing Information
| Model | Description |
| LNK-IMC005G | Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
| LNK-IMC005GP | Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |

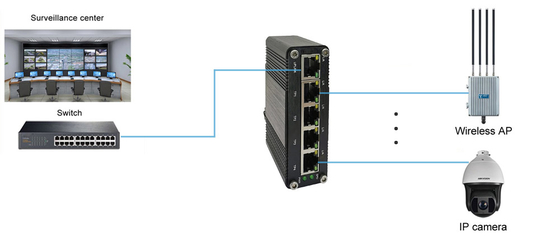

Application
