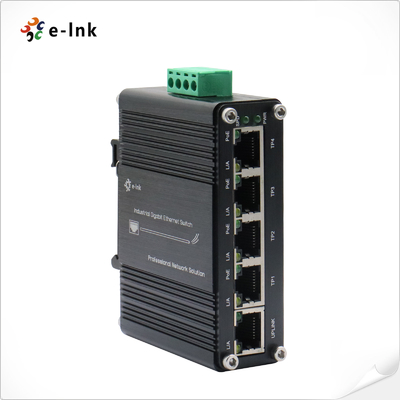

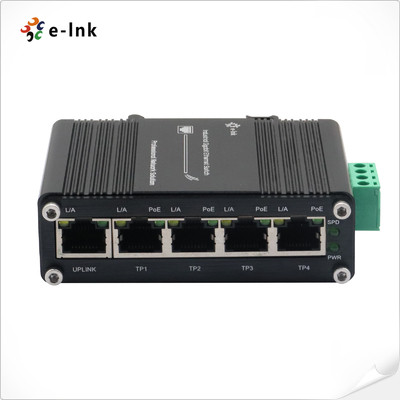

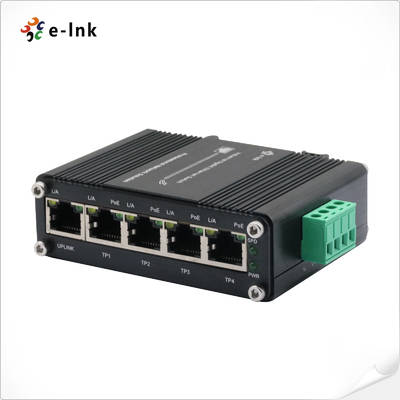

Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch

Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch
Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch

ภาพใหญ่ :  Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: E-link
ได้รับการรับรอง: CE,FCC,RoHs
Model Number: LNK-IMC005GP
การชำระเงิน:
Minimum Order Quantity: 1 pcs
ราคา: US$29.9/pu
Packaging Details: Industrial Ethernet PoE Switch Standard Export Package
Delivery Time: 7 working days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 2000 pcs/per month
รายละเอียดสินค้า
Keywords: Gigabit PoE Ethernet switch PoE Standard: IEEE802.3af/at
PoE Ports: 4 ports 10/100/1000BASE-T 802.3at Uplink Port: 1 port Gigabit Ethernet
Pin Assignment: 4/5(+), 7/8(-) Mounting Options: DIN-Rail / Wall-mount
Dimensions (WxDxH): 95 x 70x 29mm Weight: 0.25Kg
เน้น:

1 Ports Uplink Ethernet Switch

,

802.3at PoE Ethernet Switch

,

Industrial 4 Ports Gigabit 802.3at PoE

Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Overview

LNK-IMC005GP Industrial PoE+ Switch compact 5-port industrial switch features 4×10/100/1000BASE-T
PoE+ ports (802.3at) and 1×Gigabit uplink port. With 12-48V DC wide input and rugged industrial
design (-40~75°C operation, vibration/shock resistant), it delivers reliable connectivity for harsh
environments. CE/FCC certified and 100% burn-in tested for industrial applications like automation
and surveillance systems.
Key features:
✓ 4×PoE+ ports (30W/port)
✓ Industrial-grade reliability
✓ Plug-and-play operation
Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch 0




































Features
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Application
Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch 1





















Technical Indexes

Ethernet
Standards:IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer:1Mbits
Packet Length:10Kbytes
MAC Address Table:8K
Switch Fabric:10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

PoE (Power over Ethernet)
Standard:IEEE802.3af/at
Port:RJ45
Power Pin Assignment4/5(+), 7/8(-)
PoE Budget:Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Electrical and Mechanical
Input Power:12~48VDC (Terminal Block)
Power Consumption:<125W (Non-PoE<6W)
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
Dimensions (WxDxH):95 x 70x 29mm
Weight:0.25Kg
Casing:Aluminum Case
Mounting Options:DIN-Rail / Wall-mount
LED Indicators:
PWRPower
L/ALink/Activity
PoEMax 30W per port
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
























































Ordeing Information

ModelDescription
LNK-IMC005GPMini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting OptionsDefault DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power OptionsPower Supply is to be purchased separately
