ฟอร์มแฟคเตอร์: | ตัวรับส่งสัญญาณ SFP | อัตราการส่งข้อมูล: | 100GB |
---|---|---|---|
ความยาวคลื่น: | 1310nm | ประเภทเส้นใย: | SMF |
แม็กซ์: | 10/20/40 กม | เชื่อมต่อ: | LC สองหน้า |
เน้น: | sfp transceiver สองทิศทาง,โมดูล sfp ที่รองรับ cisco |

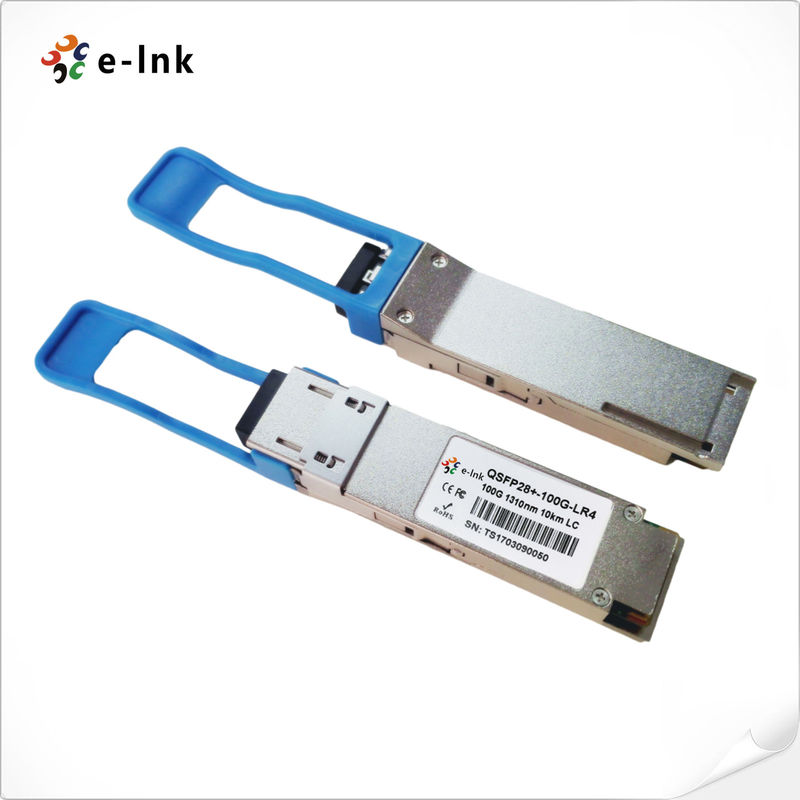

100 กรัม QSFP28 1310nm 10km 20km 40km LR ER CWDW SFP โมดูลตัวรับส่งสัญญาณแสง
รุ่น: LNK-QSFP28 ซีรี่ส์
ภาพรวม
The LNK-QSFP28-ER4 is a transceiver module designed for 40km with FEC (30km without FEC) optical communication applications. LNK-QSFP28-ER4 เป็นโมดูลรับส่งสัญญาณที่ออกแบบมาสำหรับ 40km ด้วยแอพพลิเคชั่นการสื่อสารทางแสง FEC (30km ไม่มี FEC) The design is compliant to 100GbASE-ER4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. การออกแบบนั้นสอดคล้องกับ 100GbASE-ER4 ของ IEEE 802.3-2012 ข้อ 88 มาตรฐาน IEEE 802.3bm CAUI-4 ชิปไปยังโมดูลไฟฟ้ามาตรฐาน ITU-T G.959.1-2012-02 มาตรฐาน The module converts 4 inputs channels (ch) of 25.78 Gbps to electricaldata to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. โมดูลแปลงช่องสัญญาณอินพุต 4 ช่อง (ch) ของ 25.78 Gbps เป็น electricaldata เป็นสัญญาณแสง 4 เลนและมัลติเพล็กซ์ให้เป็นช่องทางเดียวสำหรับการส่งผ่านแสง 100Gb / s Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data. ในทางกลับกันตัวรับสัญญาณโมดูลจะลดอินพุตมัลติเพล็กซ์แบบออปติกเป็น 100Gb / s เป็นสัญญาณ 4 เลนและแปลงให้เป็นข้อมูลทางไฟฟ้าเอาต์พุต 4 เลน
The central wavelengths of the 4 lanes are 1296 nm, 1300 nm, 1305 nm and 1309 nm. ความยาวคลื่นกลางของ 4 เลนคือ 1296 nm, 1300 nm, 1305 nm และ 1309 nm It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. มันมีตัวเชื่อมต่อ LC เพล็กซ์สำหรับอินเทอร์เฟซแบบออปติคัลและตัวเชื่อมต่อ 38-pin สำหรับอินเทอร์เฟซไฟฟ้า To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. เพื่อลดการกระจายแสงในระบบระยะไกลจึงต้องใช้ไฟเบอร์โหมดเดี่ยว (SMF) ในโมดูลนี้
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). ผลิตภัณฑ์ได้รับการออกแบบด้วยฟอร์มแฟคเตอร์การเชื่อมต่อด้วยแสง / ไฟฟ้าและอินเทอร์เฟซการวินิจฉัยแบบดิจิตอลตาม QSFP28 Multi-Source Agreement (MSA) It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. มันถูกออกแบบมาเพื่อตอบสนองสภาพการทำงานภายนอกที่รุนแรงที่สุดรวมถึงอุณหภูมิความชื้นและการรบกวนของ EMI
The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. โมดูลทำงานจากแหล่งจ่ายไฟเดี่ยว + 3.3V และสัญญาณควบคุมส่วนกลาง LVCMOS / LVTTL เช่นโมดูลปัจจุบัน, รีเซ็ต, อินเตอร์รัปต์และโหมดพลังงานต่ำมีให้กับโมดูล A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. อินเทอร์เฟซอนุกรม 2 สายมีให้สำหรับการส่งและรับสัญญาณควบคุมที่ซับซ้อนมากขึ้นและรับข้อมูลการวินิจฉัยแบบดิจิตอล Individual channels can be addressed and unused channels can be shut down for maximum design flexibility. สามารถระบุแต่ละช่องได้และสามารถปิดช่องที่ไม่ได้ใช้เพื่อความยืดหยุ่นในการออกแบบสูงสุด
The T8PLHG30D is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). T8PLHG30D ได้รับการออกแบบด้วยรูปแบบตัวประกอบการเชื่อมต่อแบบออปติคัล / ไฟฟ้าและอินเทอร์เฟซการวินิจฉัยแบบดิจิตอลตาม QSFP28 Multi-Source Agreement (MSA) It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. มันถูกออกแบบมาเพื่อตอบสนองสภาพการทำงานภายนอกที่รุนแรงที่สุดรวมถึงอุณหภูมิความชื้นและการรบกวนของ EMI The module offers very high functionality and feature integration, accessible via a two-wire serial interface. โมดูลนี้มีฟังก์ชั่นการทำงานสูงมากและการรวมคุณสมบัติสามารถเข้าถึงได้ผ่านอินเตอร์เฟสแบบอนุกรมสองสาย
ลักษณะเฉพาะ
ข้อมูลการสั่งซื้อ
แบบ | ลักษณะ |
LNK-QSFP28-SR4 | 100G QSFP28 850nm 100m SR4 MPO |
LNK-QSFP28-LR4-10C | 100G QSFP28 1310nm 10km LR4 LC CWDM4 |
LNK-QSFP28-LR4-10 | 100G QSFP28 1310nm 10km LR4 LC |
LNK-QSFP28-LR4-20 | 100G QSFP28 1310nm 20km LR4 LC |
LNK-QSFP28-ER4 | 100G QSFP28 1310nm 40km ER4 LC Lite |
