| Dimension: | 138mm(L) X 112mm(W) X 60mm(H) | Weight: | 690g |
|---|---|---|---|
| Installation: | Din-Rail mounting, Wall mounting | Wavelength: | 1310nm/1550nm |
| Input Voltage: | 24VDC(18-36VDC), Redundant dual inputs | Input Current: | <0.5A @24VDC |
| เน้น: | industrial grade network switch,industrial grade ethernet switch |
||
Overview

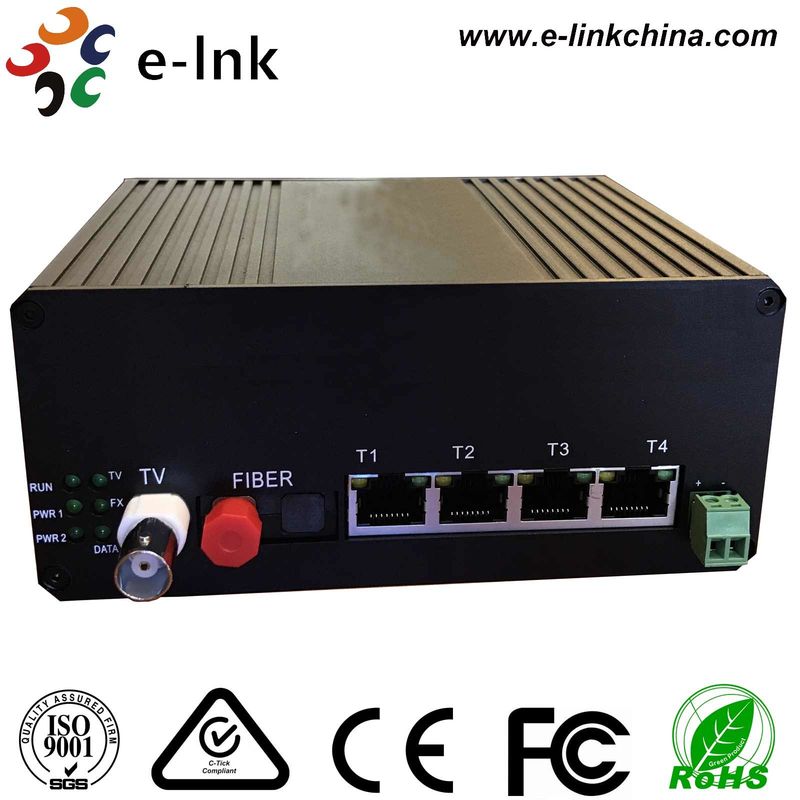

LNK-GY4E1V1D Series physical isolation Ethernet switch is designed for hardened industrial environment. which provides 4x10/100M Ethernet + 1xVideo + 1xRS485 + 1xGigabit Fiber. The physical isolated Industrial Ethernet Switch can transmit 4channel separate and fully isolated 10/100M Ethernet. It's ideal for building a internal network and public network at the same time. And it's also suitable for 4 highly isolated networks occasions and suitable for DSLAM bandwidth expansion without changing the original fiber optical cable.
Features
Application Diagram
Technical Indexes
| Parameter | Specifications |
| Ports |
1 x Gigabit Fiber Port (FC default) 4 x 10/100M Ethernet Port with physical isolation to share 100M speed 1 x Analog Video 1 x RS485 Return Data |
| Physical Characteristics |
Housing: Aluminum Alloy material with IP40 Protection Dimension: 138mm(L) X 112mm(W) X 60mm(H) Weight: 690g Installation: Din-Rail mounting, Wall mounting |
| Interfaces |
4 RJ45 Ports Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X) 10/100Base-T(X) auto negotiation speed Full/Half duplex mode Auto MDI-MDI-X connection Up to 100M Cat-5 transmission distance 1 BNC Port Video format PAL/NTSC/SECAM Video Impedance 75Ω 1 Data Port Data Format RS485 1 Fiber Port Comply with IEEE802.3u, 1000Base-FX Rate: 1000Mbps Wavelength: 1310nm/1550nm Up to 500m transmission distance with multi-mode Up to 20km,40km,60km,80km transmission distance with single-mode SC/ST/FC interfaces optional |
| Power |
Input Voltage: 24VDC(18-36VDC), Redundant dual inputs Input Current: <0.5A @24VDC Overload Current Protection: Support Reverse Polarity Protection: Support Redundant Protection: Support Connection: 6-pin terminal blocks |
| Environmental Limits |
Operating Temperature: -40℃-85℃ Storage Temperature: -40℃-85℃ Ambient Relative Humidity: 5%-95% (non-condensing) |
| Approvals |
Safety: UL 60950-1 EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: • EN61000-4-2 (ESD) , Level 3 • EN61000-4-3 (RS) , Level 3 • EN61000-4-4 (EFT) , Level 3 • EN61000-4-5 (Surge), Level 3 • EN61000-4-6 (CS) , Level 3 • EN61000-4-8, Level 3 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Industry: IEC61000-6-2 Rail: EN50155, EN50121-4 Traffic: NEMA TS-2 |
| Warranty | 5-year |
